A COST EFFECTIVE WOW FACTOR

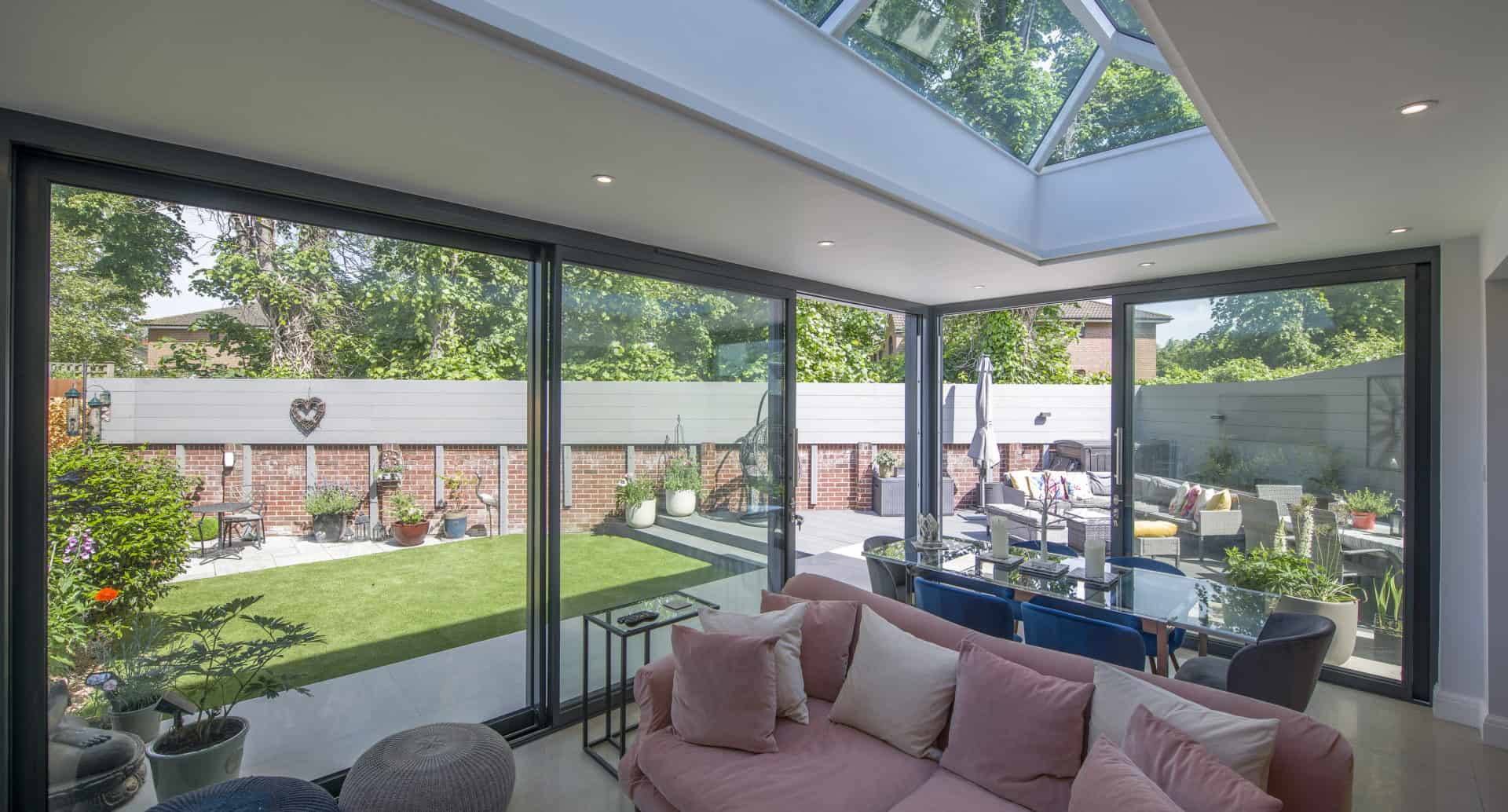

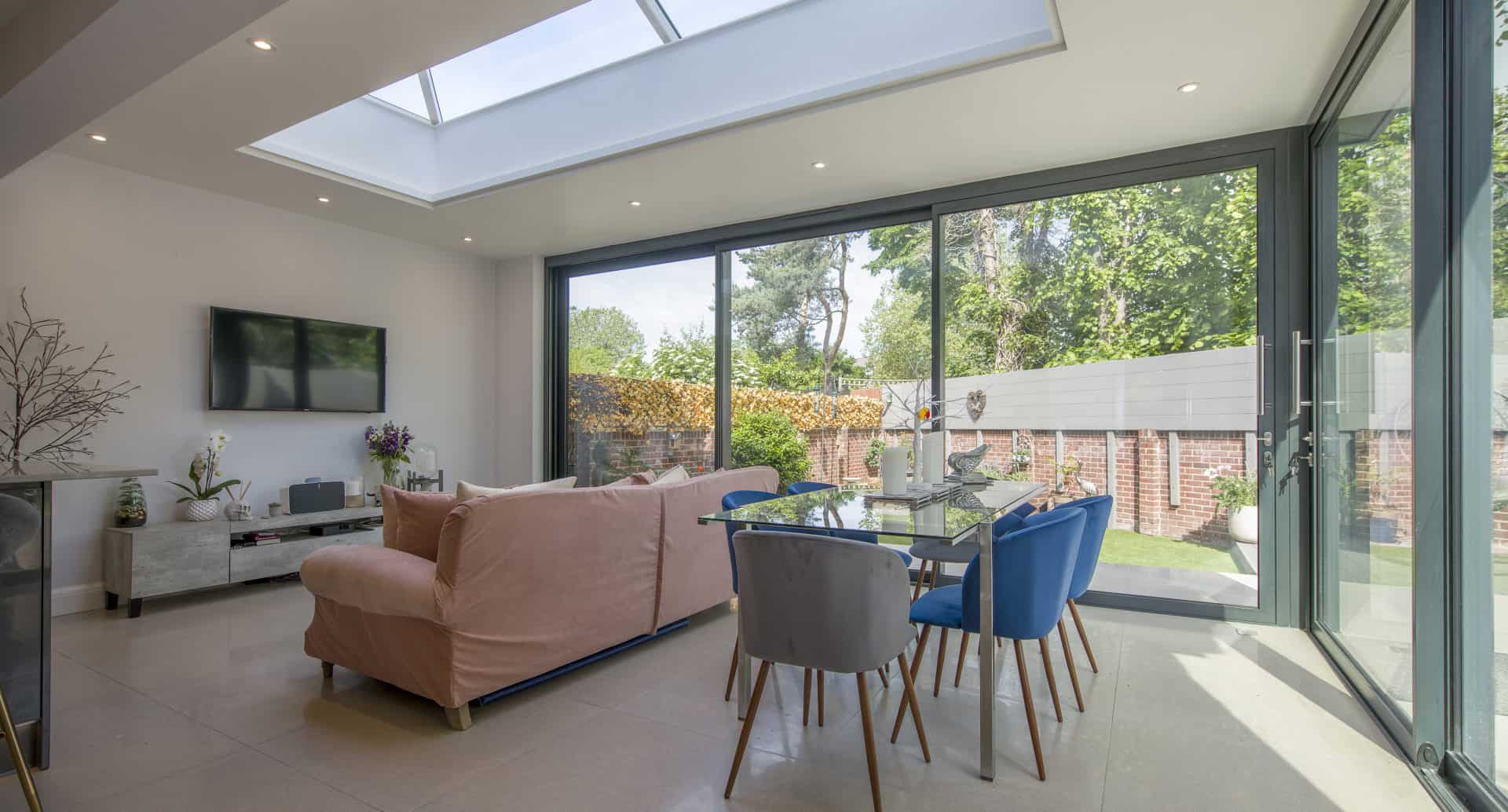

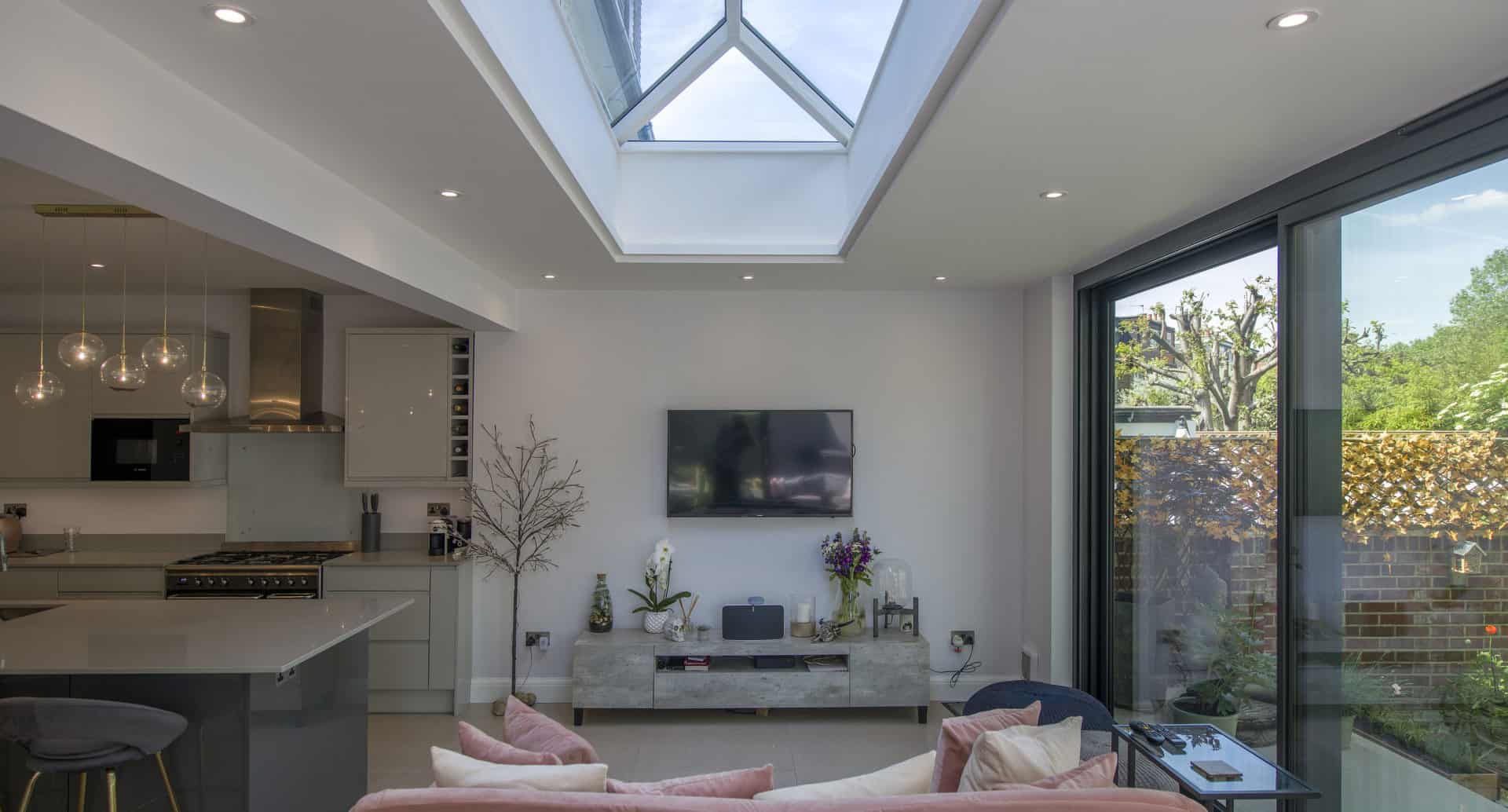

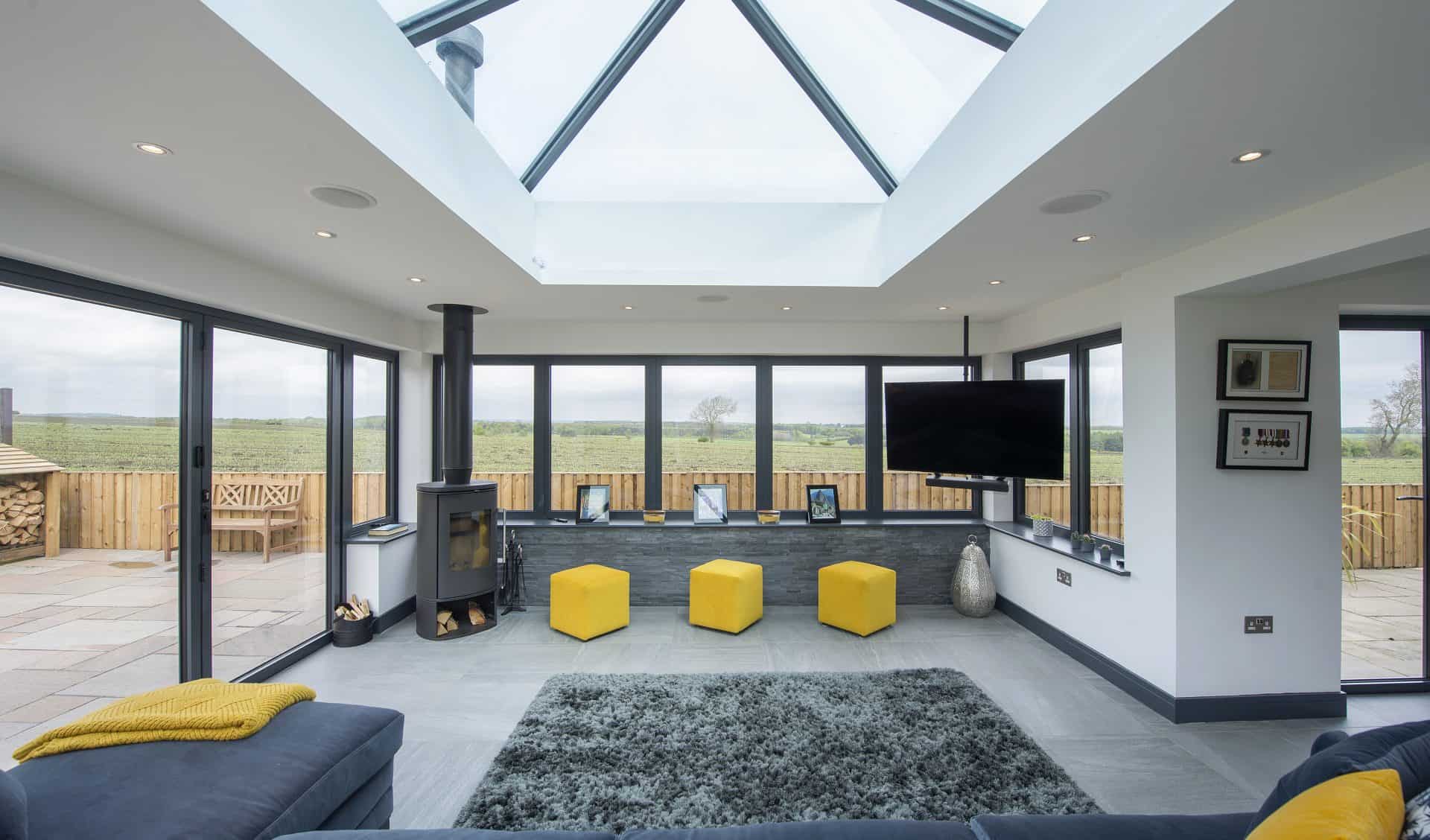

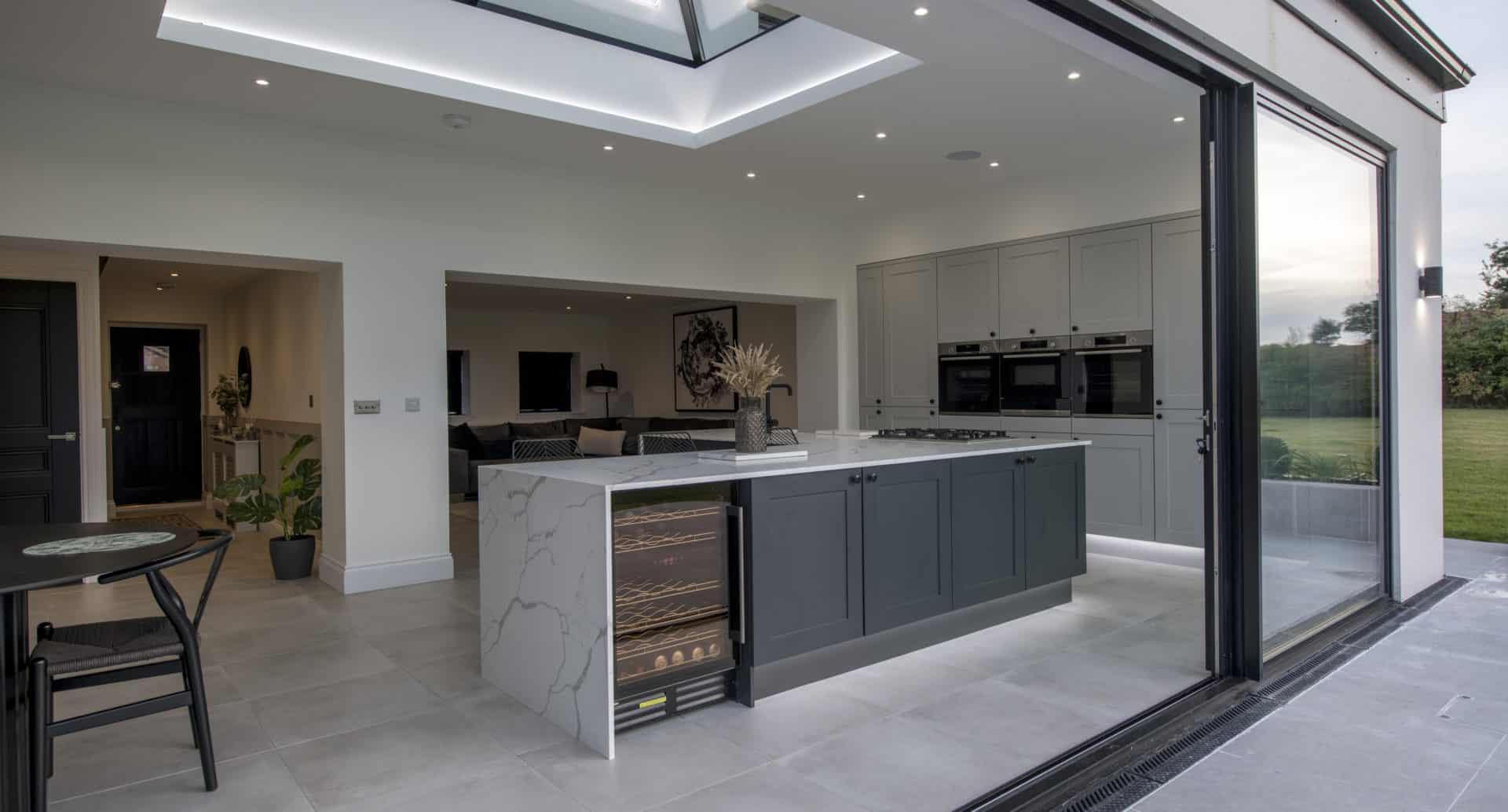

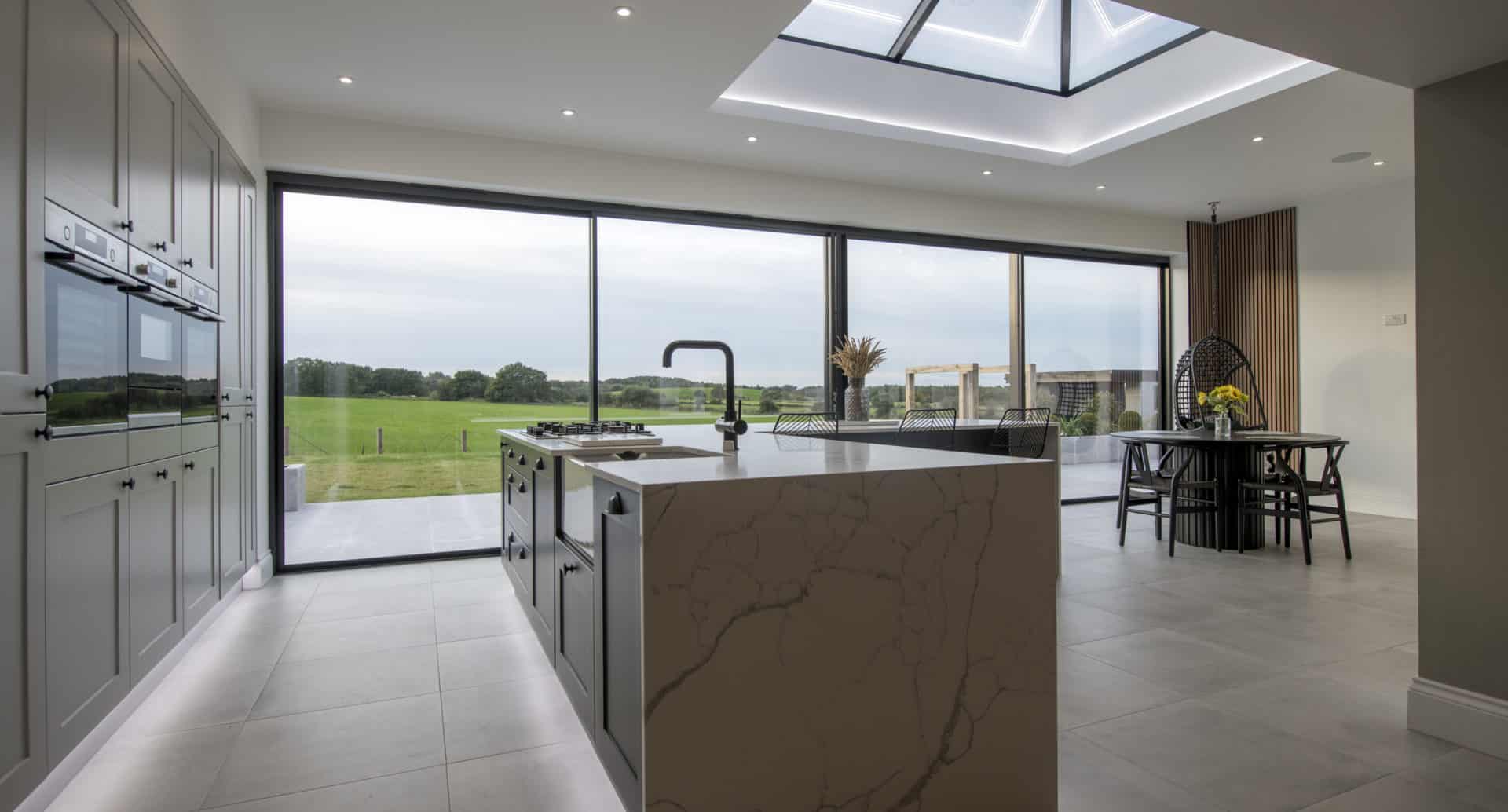

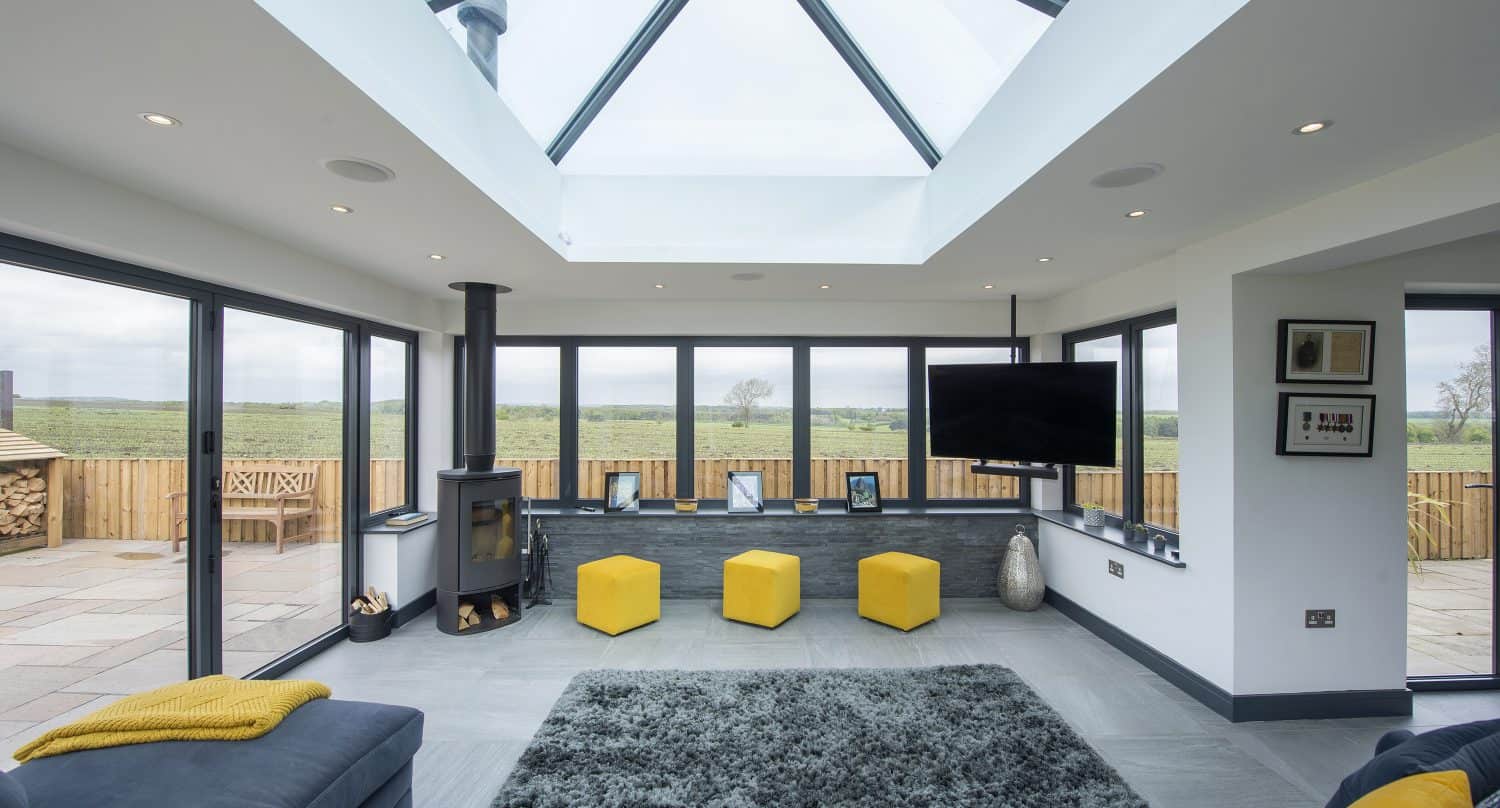

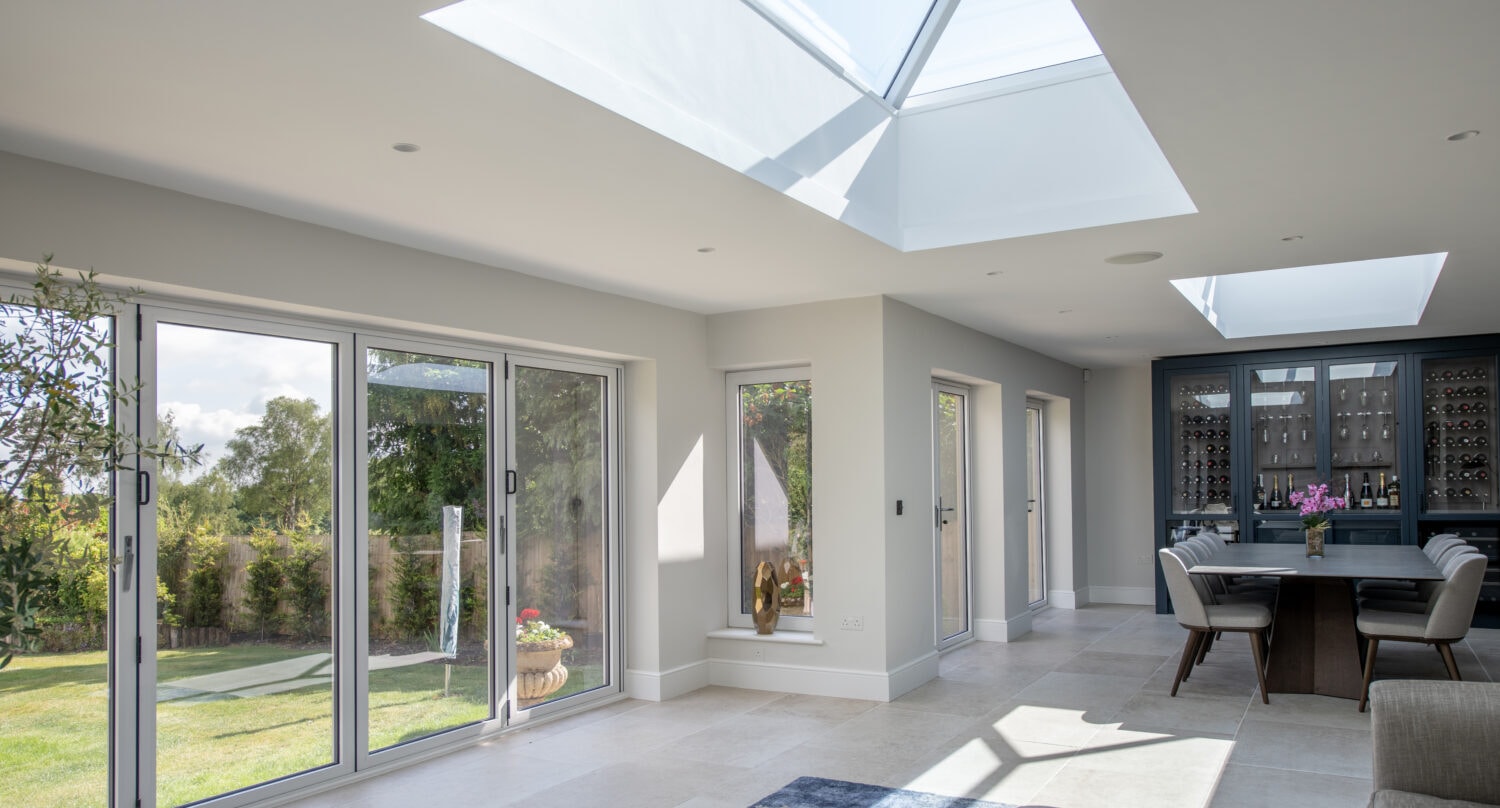

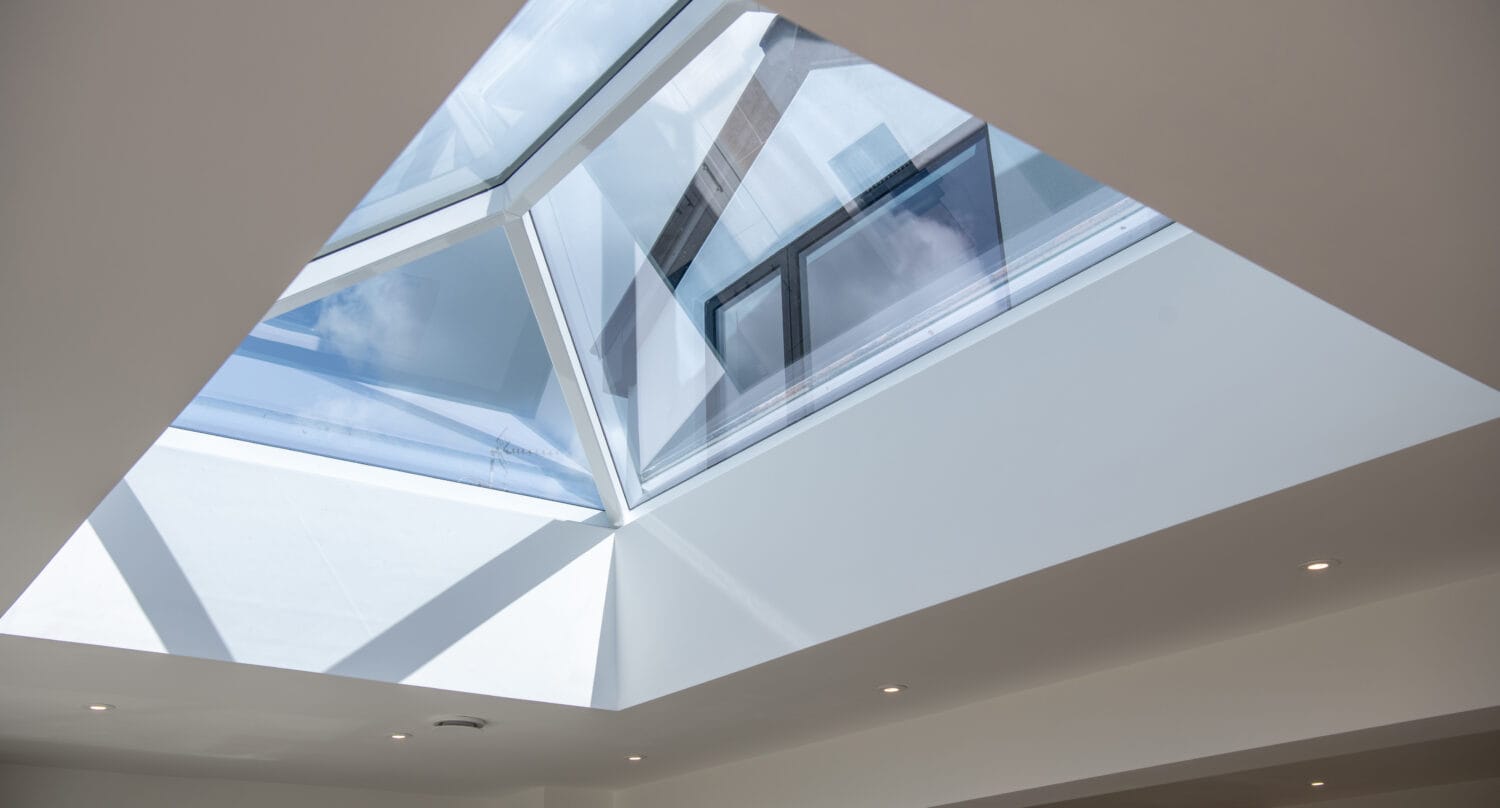

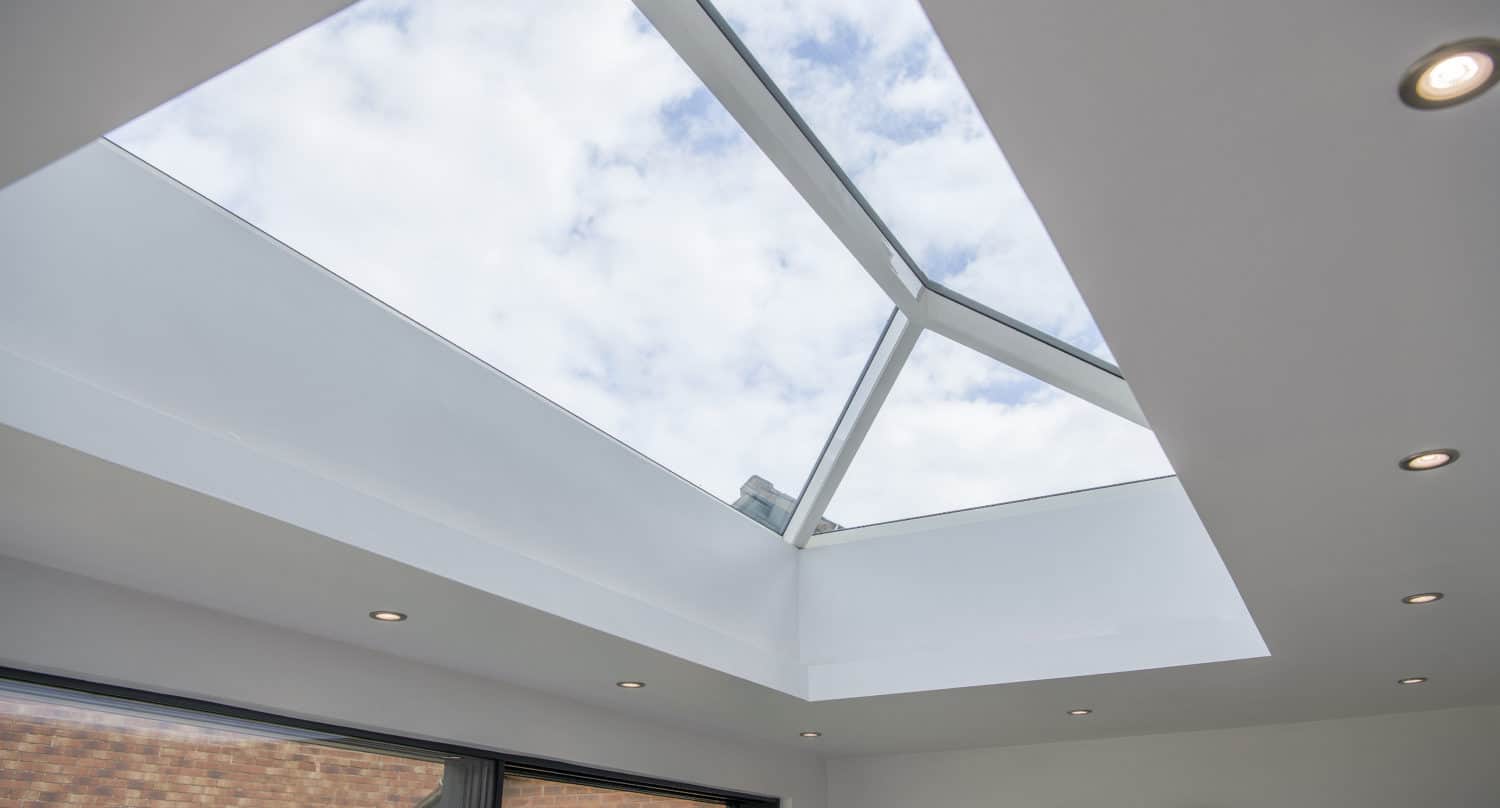

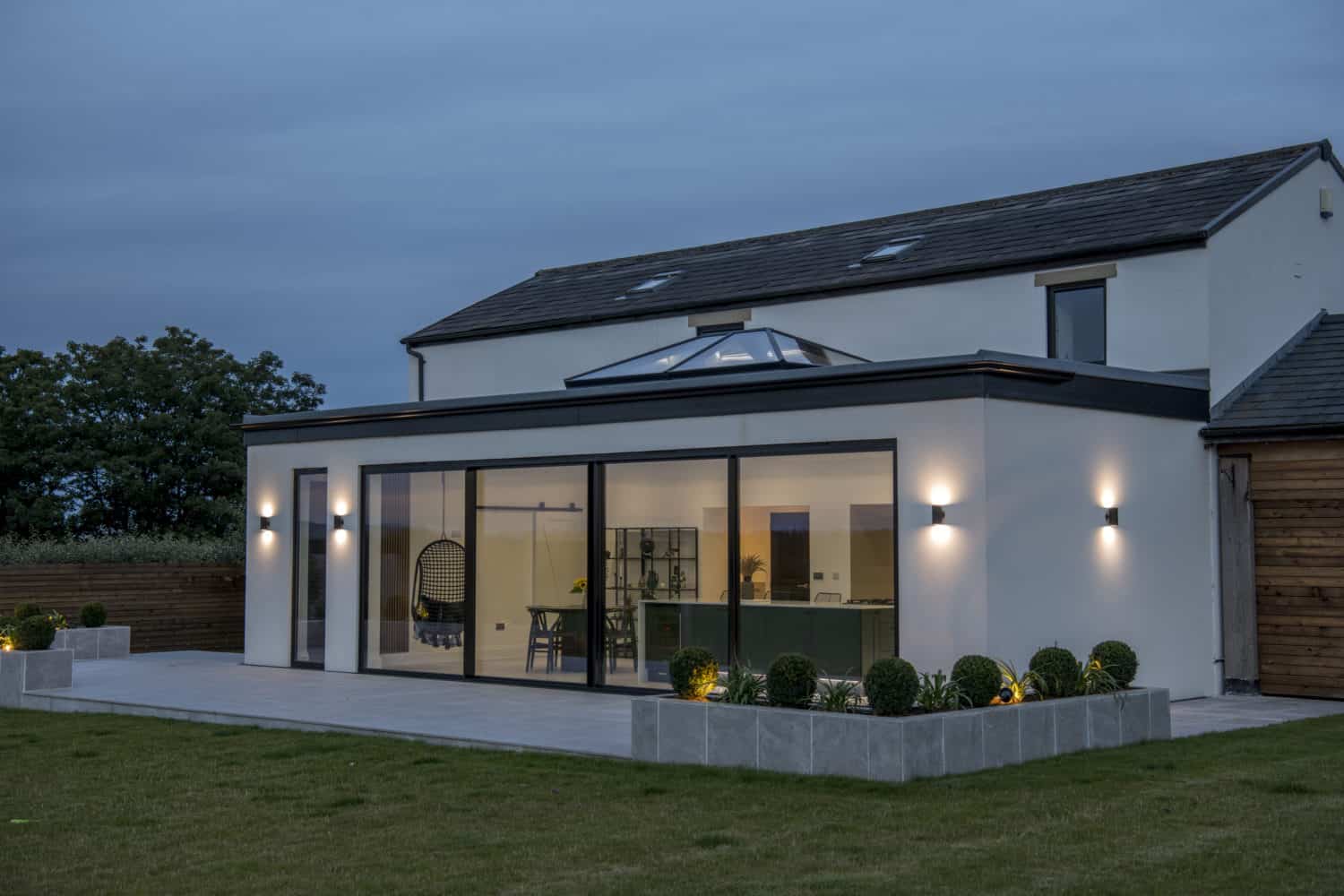

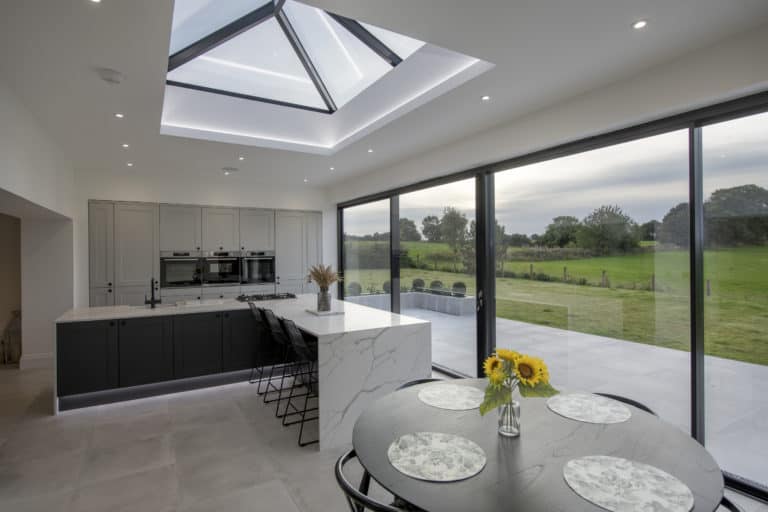

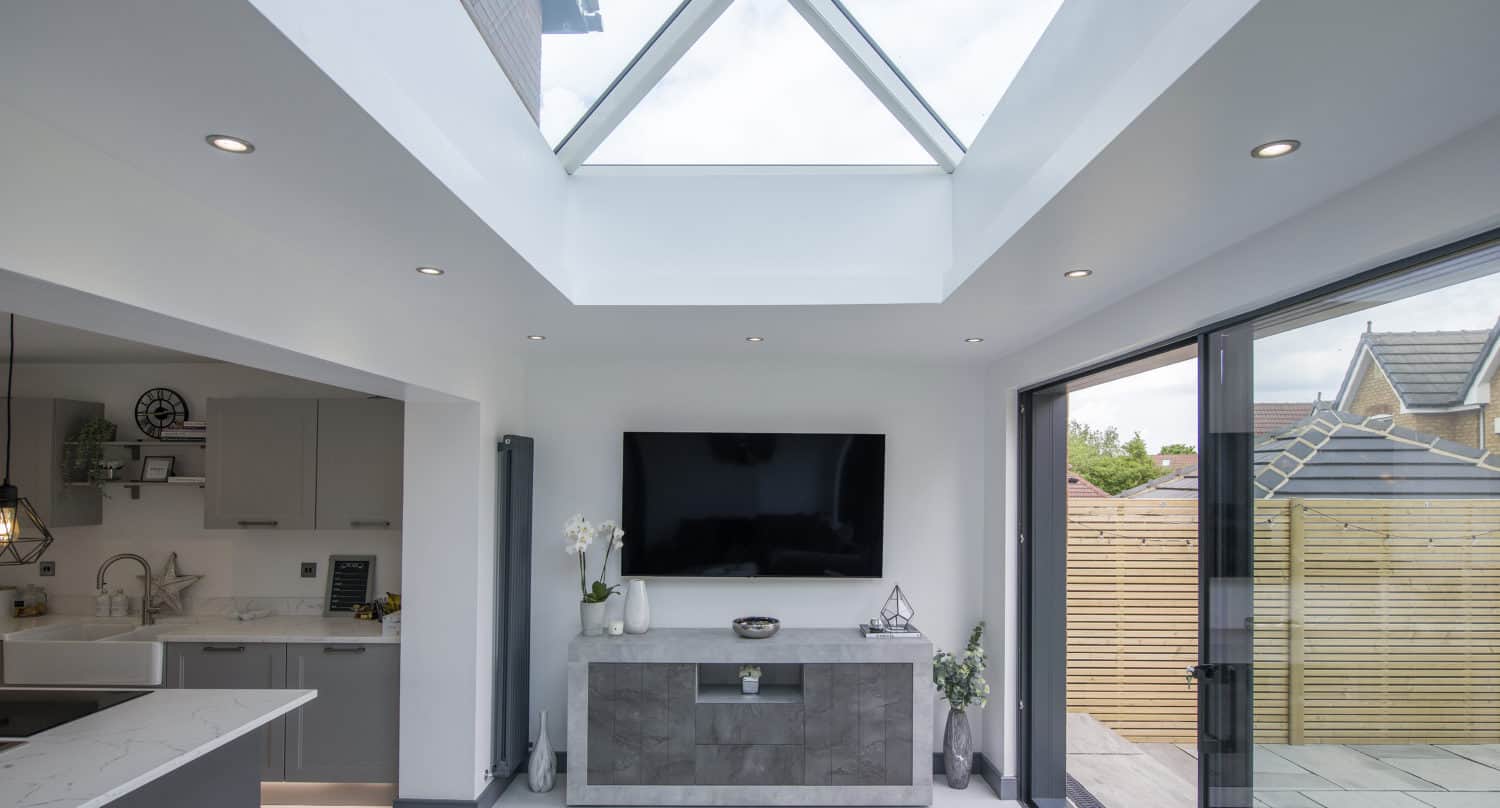

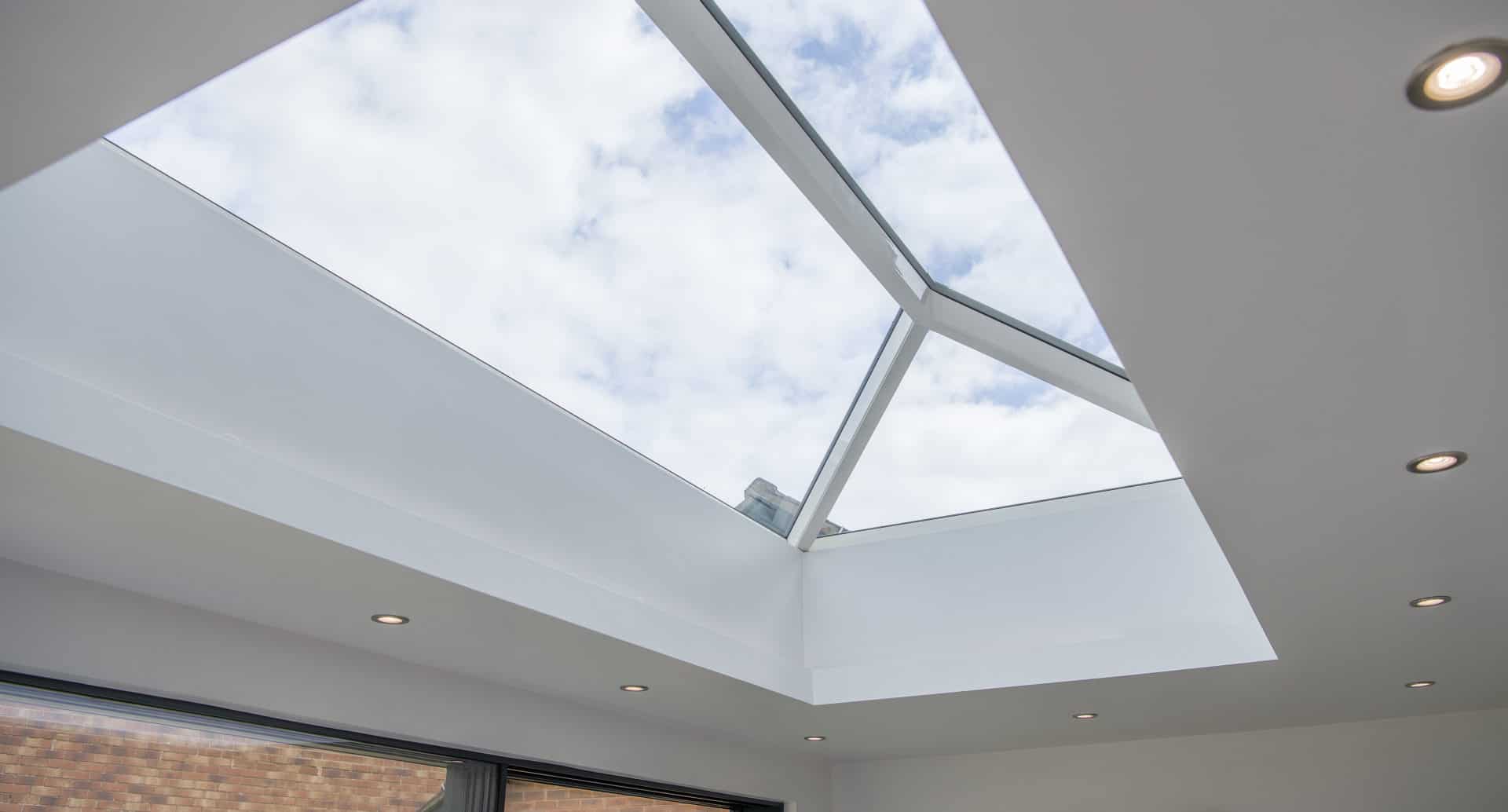

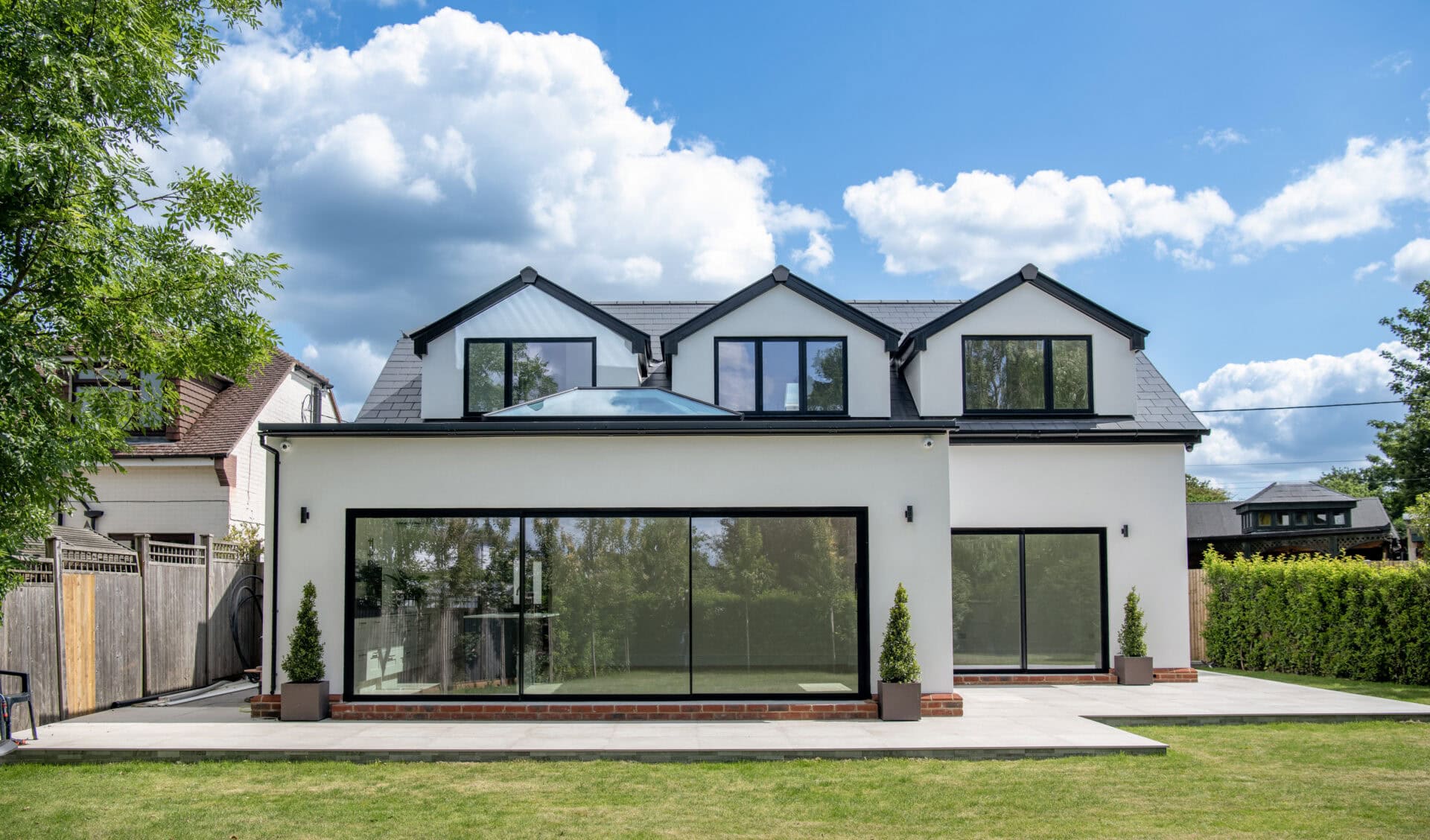

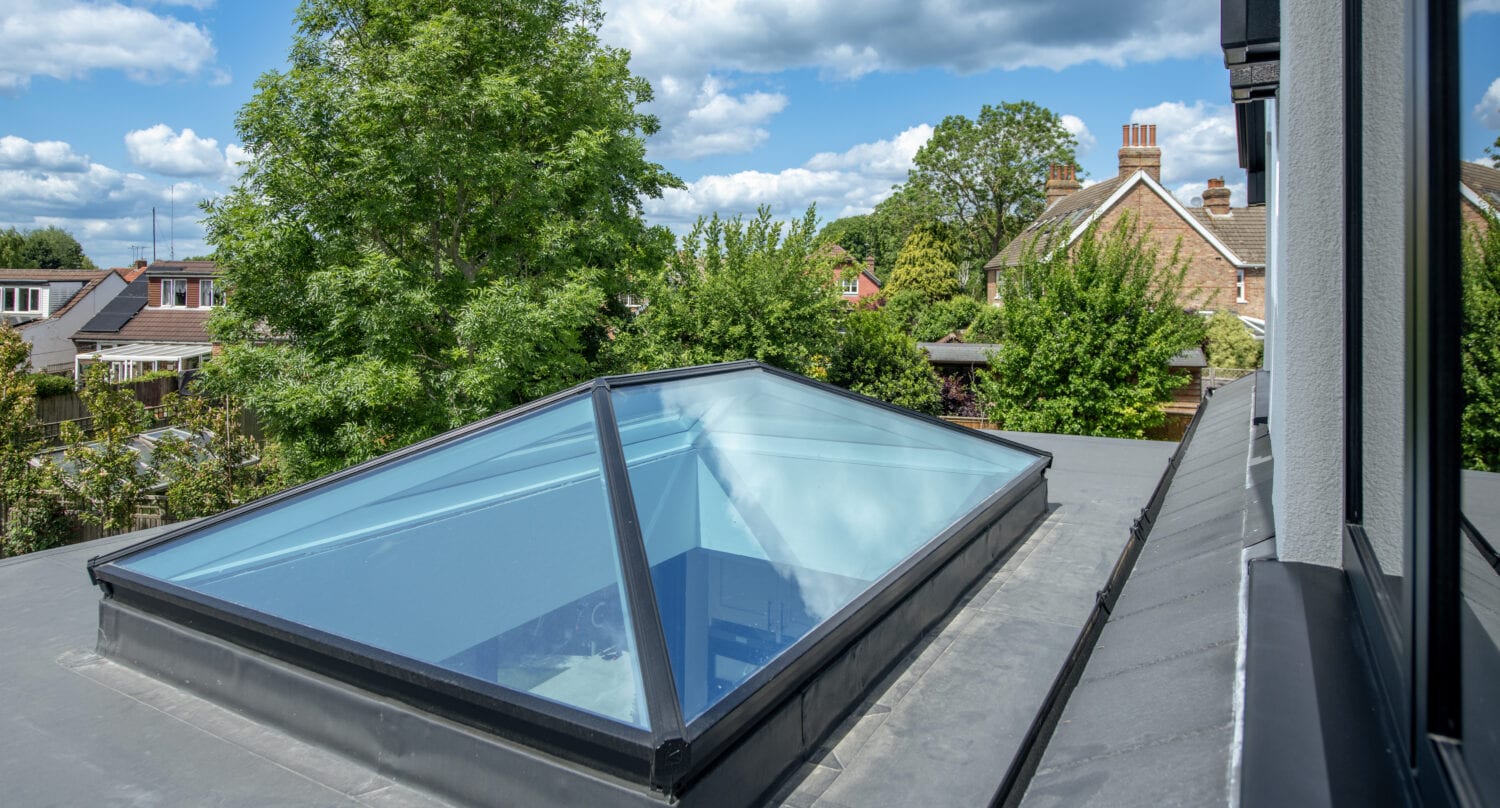

The EOS roof lantern is a more cost-effective solution than our Sky-Line roof lantern but is a viable alternative because as well as value for money it boasts comparable design features.

Intelligent engineering during the roofs design means we have been able to surpass the requirements  for structural strength whilst still offering extremely slender aluminium profiles. The spar sightlines throughout the roof are only 57mm wide, and the ridge sections are one of the slimmest currently available on the market.

DESIGN & ENGINEERING

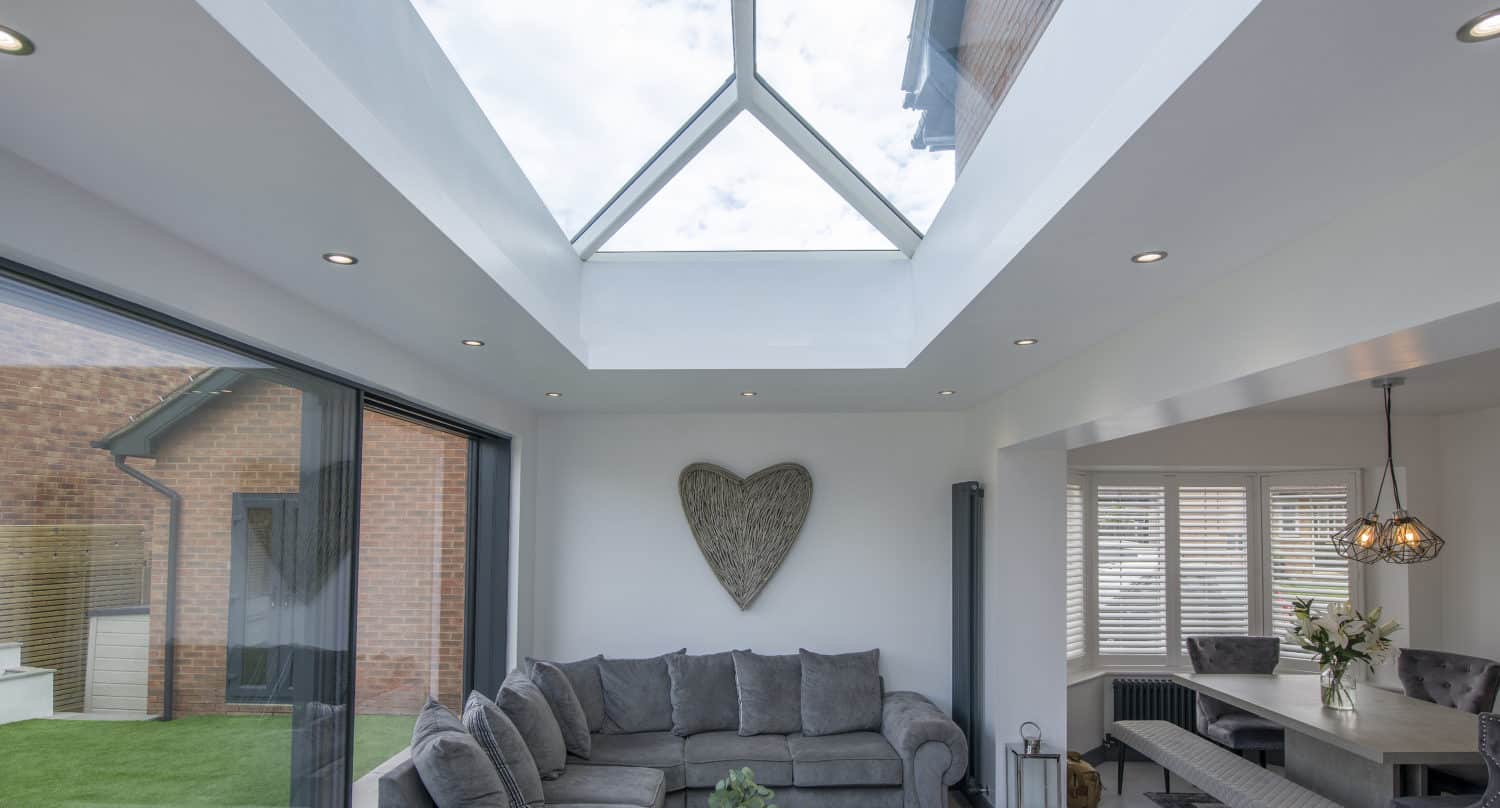

All Express roof lanterns are designed and structurally guaranteed by our experienced, technical team. The roof itself has been designed around maximum uninterrupted sight lines bar numbers are reduced (or can be added if you prefer) boasting hidden fixings and unbroken sightlines the key design element of the roof is to make all elements as unobtrusive as possible. Minimal profiles and maximum glass are the key fundamentals that drive the popularity of this aluminium roof lantern.

Superb weather ratings – watertight in winds up to 130mph

reinforced dumbell icon

Tested to withstand the harshest conditions up to an impressive 6m x 4m

Exceptional strength for minimalist design and large glass panes

Fully insulated thermally broken eaves beam

KEY FEATURES

  • Fewer bars means less potential points of failure
  • Available on a quick lead time as profiles are held in stock
  • Supplied with high-performance, solar control glazing as standard.
  • Thermally broken inside and out.
  • Slender sightlines of just 57mm throughout.
  • Available in sizes up to 4000mm x 6000mm.
  • Excellent value for money.
  • Available in white gloss, Grey 7016 matt, Black 9005 matt as standard with the full RAL colour range available.

Specification

  • Rectangular double ended rooflights available in widths of 1000mm – 4000mm
  • Bespoke roof lanterns are available in lengths from 1000-6000mm.
  • 2 bars at each end (compared to five in alternative systems)
  • Minimal framework for optimum aesthetics.
  • Slim-line sightlines throughout of just 57mm.
  • The thermal performance has been optimised to make it suitable for extensions in domestic properties. Typical U value with 1.0 glass ranges from 1.39W/m2k down to an impressive 1.14W/m2K. The larger the roof lantern, but the more thermally efficient the overall product becomes.
  • The roof is made up of with fewer spars, meaning less leakage points.
  • Our Eos range is a complete aluminium roof system boasting a thermally broken aluminium ridge body with aluminium glazing bar and top caps.
  • 25 degree fixed pitch to all sides.
  • High performance Low E & Solar control glazing offered as standard.
  • Full RAL colour range available.

Get the full specifications

We'll email you a link to download the full specifications

  • By requesting this email you are agreeing to allow Express Bi-Folding Doors to contact you with other information.

Eos roof lantern FAQ's

What is the maximum size of the EOS roof lantern?

The maximum size of the Eos roof lantern is an impressive 6000mm x 4000mm.

Can you have an opening vent in the roof?

No, the roof is designed around minimum sightlines and maximum glass so we have not designed a vent for the product.

What size does the upstand need to be that the roof will sit on?

The upstand needs to be a minimum height of 150mm to comply with building regulations and a recommended minimum depth of 70mm.

Do Express provide the upstand for the roof?

No, the upstand needs to be built and prepared on site before we carry out the installation. Our surveyor will talk through the requirements during the site survey & we’ll e-mail technical specifications to aid your builders on site.

What glass types are available?

We offer low E glass with a self clean coating as standard in our roof glazing along with standard options of Advance Roof Blue or Advance Roof Neutral (Neutral being a grey tint).

Can the EOS roof be dual colour?

Yes, you can have a different colour on the inside and the outside.

Can you hang light fittings from the roof?

No, the EOS roof have not been tested for a point load on any part of the structure of the roof or the possibility of the roof becoming live.

colour choices for the front door

WHAT'S YOUR COLOUR

Our three ranges offer some stunning popular colour finishes but we also offer the option of over 200 RAL colours so you can pick the exact colour you wish.

And because they’re powder-coated, durability is never an issue. The colour is baked-on, providing a lasting finish that won’t peel off or lose its colour – and is guaranteed for 10 years.

Standard
range

Essence
range

Elite
range

Standard range

Want a fast turnaround and a premium look? We keep large stocks of our three most RAL popular colours.

9016 Traffic White

9005 Jet Black

7016 Anthracite Grey

Essence range

Developed by our design experts, our unique range of seven metallic colours has proved to be our most popular special finishes. They’re so exclusive they’re not even available within our standard RAL range.

Thunder Grey

Magma Grey

Stove Black

Smoke Grey

Granite

Mocha

Galaxy

Elite range

Our final selection of special colours offers enhanced durability and a premium textured metallic finish for added sophistication.

Emerald green

Agate green

Stone Grey

Trojan Bronze

Space Grey

Ivory Cream

Umber Brown

Pearl White

Midnight Blue

Vintage Cream

Noir

Jade

Starlight

Mist

Storm

Tempest

There are also up to 200 RAL colours to choose from including slight discounts for RAL 9007, RAL 7021 & RAL 7032 due to their popularity.

9007 Silver Grey

7021 Black Grey

7032 Pebble Grey

SAFETY & SECURITY

Our EOS Roof Skylight is designed with security in mind. Toughened glass is offered as standard regardless of size of window and it is rigorously tested for the most severe weather conditions. Our dedication to quality engineering means that we offer a 10 year guarantee on all our products.

We include a scaffold tower in every supply and fit quotation and the product is built-up on site for ease of handling & health and safety.

Certass CQ Assured Scheme

We are members of the Certass Certified Quality assured scheme which is a quality assurance scheme for reputable and trustworthy Companies, designed to give consumers additional confidence when working with Companies for their renovation, maintenance and improvement projects.

The Certass CQ scheme isn’t a building regulations document but offers peace of mind for the customer that their works have been installed correctly and to the relevant industry standards. As part of the scheme our installations are independently audited by Certass every month and a certificate of conformity is sent to our customers upon the completion of our works.

All our installations are backed by the Certass Certified Quality scheme and after the completion of our woks our customers receive a personalised Certass CQ branded certificate reaffirming that the works have been completed to the relevant industry standards. Also included is a 10-year insurance backed guarantee to sit alongside our own comprehensive guarantee:

  • The certification includes all works completed and installed by Express.
  • The scheme covers replacement installations and extensions and newbuild projects.
  • The scheme includes installations of glazed roofs.
  •  The scheme covers all our works across the whole of the UK.
