The XP10 is ideal for residential use, particularly as bifold doors replacing existing PVC doors and windows, or as the wow product to complete a new extension leading out onto a new patio. The XP10 bifold doors offer superb performance, years of reliable use and unbeatable value for money.

Get in touch today to discuss the requirements of your project.


The XP10 boasts similar qualities as our XP View & XP88 bifold doors – but it a much more cost-effective solution. It has the same multi-point locking on the master door, flat intermediate handles on the folding panels as well as a clean and modern aesthetic. Whether you’re looking to add bi-folding doors to an orangery or conservatory, or you want to upgrade your property with some stylish bi-folding patio doors, the XP10 offers market-leading quality at a very competitive price.

For more information and advice when choosing your new doors, explore our complete bi-folds buying guide.

Alt test

Comprehensive 10 Year Guarantee on the product & our installation

Expert and fully installed fitting team

Exceeding thermal regulations

Excellent value for money

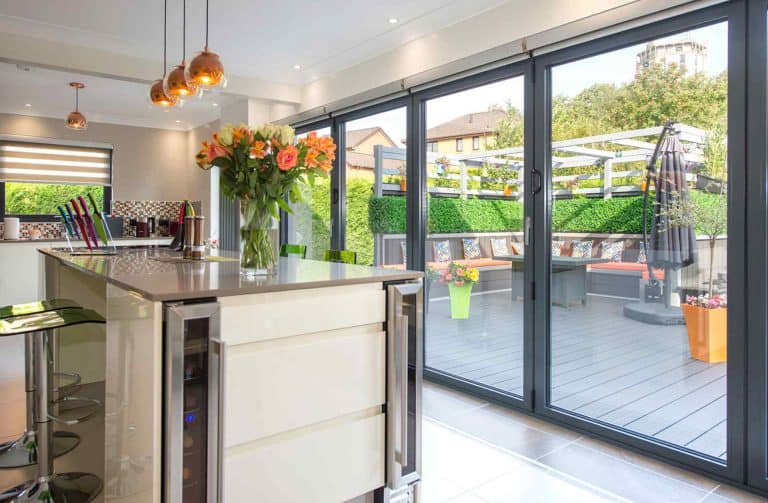

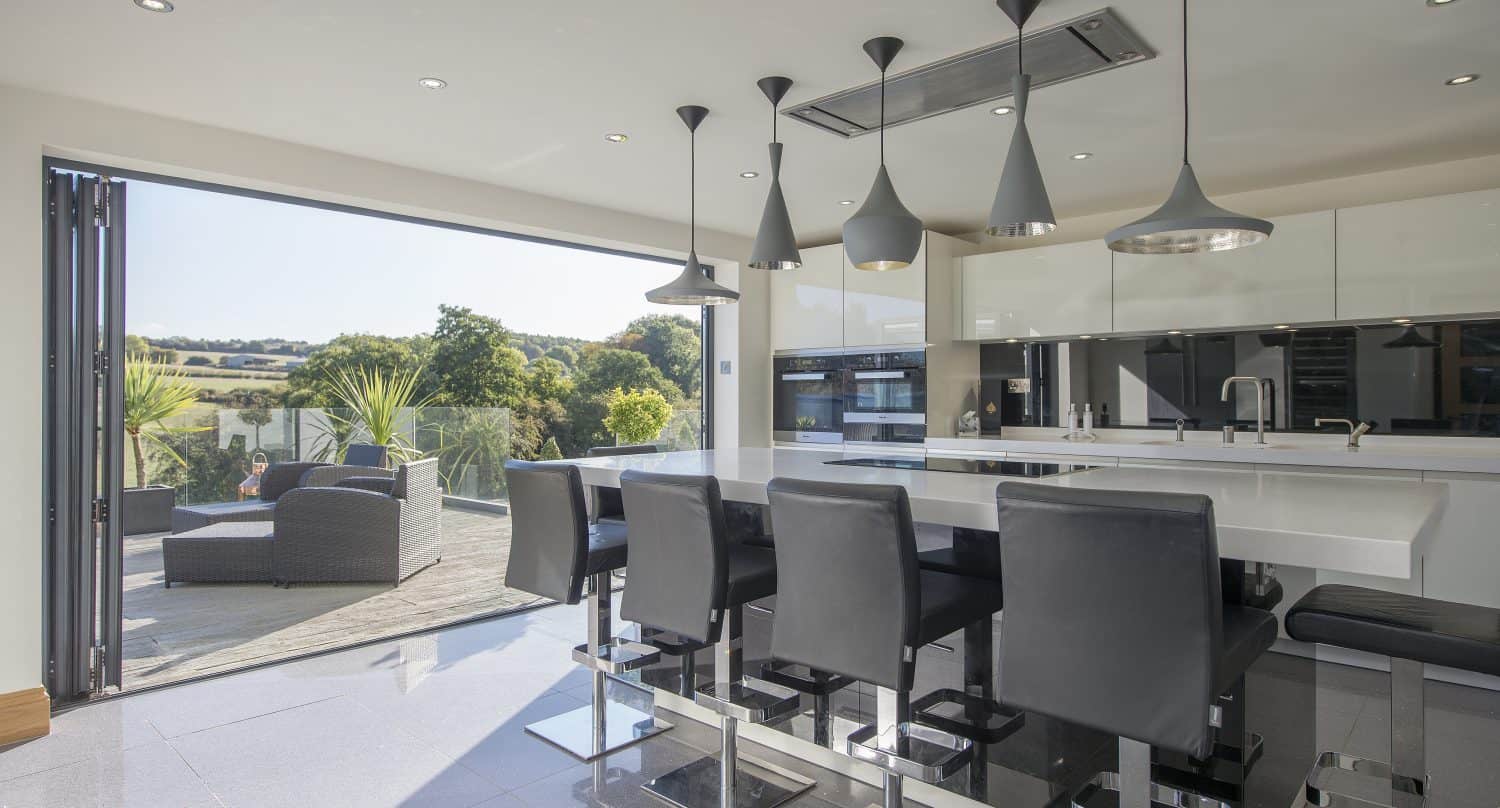

Bi-folding doors in a kitchen.


  • Contemporary squared profiles as standard.
  • Subtle and colour coded panel catch that complements the look of the door.
  • Flush threshold available ideal for wheelchair access.
  • In-line flat handles on all intermediate panels.
  • Strong and secure: five-point locking on master door with steel shoot-bolt locking rods in all intermediate panels.
  • Bottom Hung with stainless steel wheels and high precision bearings meaning the system slides effortlessly.
  • 122mm typical sightline which is slimmer than many bi-folds on the market.
  • Ideally suited for rip out replacement installations.


  • Frame depth of 70mm
  • Typical sightline of just 132mm
  • Ideal for residential applications
  • Contemporary squared profiles as standard
  • Maximum panel width of 1100mm
  • Maximum panel height of 2400mm
  • Size of overall maximum panel up to 2.4m2
  • Surpasses all requirements of document L 2014
  • Magnetic panel catch
  • In line flat handles on all intermediate, with option of matching flat handle on pass doors
  • High security, minimal maintenance and fully guaranteed
  • U Value 1.5 W/m2K based on using a sealed unit with 1.0W/m2K pane
  • Air Class 4, 600Pa
  • Water Class E, 750Pa
  • Wind Class 4, 1800Pa
  • Weather BS 6375 Part 1
  • Full complement of doors, windows and roofs to suit
  • U Value 1.5 W/m2K based on using a sealed unit with 1.0W/m2K pane
  • Air Class 4, 600Pa
  • Water Class E, 750Pa
  • Wind Class 4, 1800Pa
  • Weather BS 6375 Part 1
  • Full complement of doors, windows and roofs to suit

Get the full specifications

We'll email you a link to download the full specifications

  • By requesting this email you are agreeing to allow Express Bi-Folding Doors to contact you with other information.


Bi-folding doors with Uniblinds

Perfect for controlling light and screening for privacy, integral blinds are low-maintenance, discreet and minimal. They are contained within the bi-folding patio doors themselves, so they can be concealed when not in use – allowing you to keep the sleek lines and modern feel of the frames even when the doors are open.

Bi-folding doors with integral blinds in a white dining room

Our cheapest bi-fold
The XP10 is the most cost effective bi-folding door within our portfolio. We have been manufactured and installing the door for over a decade but with constant modifications to ensure it is one of the leading bifold door systems on the market.
Our cheapest bi-fold + -
Available in 5 working days
The XP10 bi-folding door can be purchased online on a supply only basis through Our online ordering website allows you to configure your own bi-fold door or order from our pre-made stocks, which are all available within just five working days.
Available in 5 working days + -

Looking for XP10 Bi-Folding Doors in a Hurry?

Our sister Company Express Bi-Folds Direct is carrying a large stock of pre-made three panel XP10 Bi-folding doors in white, black & anthracite grey, plus one size option for four & six panel bi-folding doors.

The sizes available start from 2200mm x 2090mm up to 4800mm x 2090mm and the doors are fully assembled, wrapped and ready for express delivery.

Simply place your order online in either of these sizes without integral blinds and you’ll have your freshly ordered XP10 bi-folding door delivered to you within days.

Click the logo below for more information.

colour choices for the front door


When it comes to colour at Express Bi-folding Doors, you’ll be surprised how much you have to choose from. With three ranges of popular colours and over 200 RAL colours, as well as a range of finishes that include metal and textured finishes, you’re sure to find the right one for your property with us.

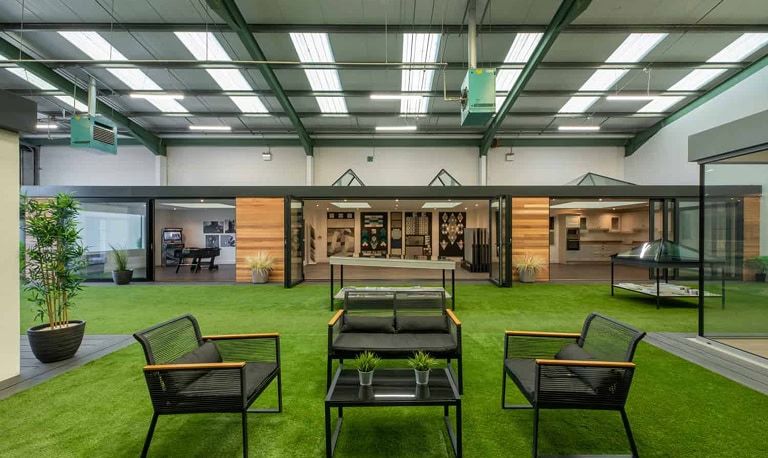

Powder-coated so durability is never an issue, the baked-on colour is guaranteed for 10 years. The best way to view our huge range of colours is to visit one of our showrooms to see the different finishes first hand. Below you can click through to find the showroom nearest to you or if it’s more convenient enjoy a virtual tour of our showrooms to gain a real insight into the extensive range that we offer.

Click here for our virtual showrooms.

Click here for information on our showrooms & exhibitions.





Standard range

Want a fast turnaround and a premium look? We keep large stocks of our three most RAL popular colours.

9016 Traffic White

9005 Jet Black

7016 Anthracite Grey

Essence range

Developed by our design experts, our unique range of seven metallic colours has proved to be our most popular special finishes. They’re so exclusive they’re not even available within our standard RAL range.

Thunder Grey

Magma Grey

Stove Black

Smoke Grey




Elite range

Our final selection of special colours offers enhanced durability and a premium textured metallic finish for added sophistication.

Emerald green

Agate green

Stone Grey

Trojan Bronze

Space Grey

Ivory Cream

Umber Brown

Pearl White

Midnight Blue

Vintage Cream







There are also up to 200 RAL colours to choose from including slight discounts for RAL 9007, RAL 7021 & RAL 7032 due to their popularity.

9007 Silver Grey

7021 Black Grey

7032 Pebble Grey



If you’re looking for security and reliability, then our XP10 bi-folding door may just be the one for you. The way our doors are manufactured means that they are solid as concrete, but light and easy to use. Each panel is injected with a liquid component that sets solid, making every bi-folding door safe and steadfast.

Our aluminium bi-folding doors are designed with security in mind with features such as:

  • Multi point locks ensuring the door is strong and secure
  • Concealed gearing that cannot be seen or attacked when the door is closed
  • The system is glazed from the inside


It’s important that your bi-folding doors are as safe as they are secure, which is why we’ve thought about everything. Whether it’s stainless steel runners to eliminate trip hazards or a magnetic panel catch to hold the doors in place, you’re sure to have peace of mind when you choose Express Bi-folding Doors.

All our XP10 bi-folding doors are expertly made in our World Class 180,000 manufacturing facility in Leeds, we have strict quality compliances in place ensuring that all the products that leave our factory are of premium quality and the perfect addition to our customers properties.


Security Lock Barrel Cylinders as standard

Feel relaxed in the knowledge that you have high security locks on your bi-folding patio doors. Our BSI lock cylinders exceed the standard for Secured by Design, boasting a 3-star diamond rating rather than just 2. They feature anti-snap, anti-drill, anti-pick and anti-bump technology to give you peace of mind. We even supply these lock cylinders internally, so the bi-folding door is as secure on the inside as the outside.


A Secured by Design standard lock usually involves having a specific lock card to have further keys cut. Ours don’t. The keys for the barrels that we supply can be cut at any locksmith’s, making it simple and easy to get spare keys. One of the worlds’ leading manufacturers of lock cylinders supplies our lock barrels, which complements our industry leading range of products.

key graphic

Certass CQ Assured Scheme

To give our customers additional confidence in the quality of our work, we are members of the Certass Certified Quality scheme which is a quality assurance scheme for reputable and trustworthy Companies, designed to give consumers additional confidence when working with Companies for their renovation, maintenance and improvement projects.

The Certass CQ scheme isn’t a building regulations document but offers peace of mind for the customer that their works have been installed correctly and to the relevant industry standards. As part of the scheme our installations are independently audited by Certass every month and a certificate of conformity is sent to our customers upon the completion of our works. Included in the CQ scheme is a 10-year insurance backed guarantee and a 120 day deposit protection policy.

If you would like your installation to be included in the CQ scheme and receive a personalised certificate of workmanship quality please ask your sales rep.


Our replacement installations in England a Wales are backed by the Certass Competent Person Scheme and after the completion of our woks our customers receive a personalised Certass branded building regulations certificate reaffirming that the works have been completed to the relevant industry standards. Also included is a 10-year insurance backed guarantee to sit alongside our own comprehensive guarantee:

• The certification includes works where the removal and reinstallation of windows and doors are completed and installed by Express.

• The scheme covers replacement installations but does not include extensions and newbuild projects.

• The scheme covers our replacement works across England and Wales.


Find out more about our XP 10 bi-folding doors.

See more
Bespoke aluminum grey doors illuminating a modern living room

XP10 doors available online

We pride ourselves on our bespoke full service offering but if you are looking to quickly purchase your bi-folding doors online to install yourself then visit our online shop. Express Bi-folds Direct offers set sized XP10 bifold doors that can be delivered directly to you within the quickest possible lead times.

Explore the options available & visit the website by clicking here.
