RAISING THE BAR

The newest in our aluminium bi-fold door range, the XP Vision is a true game changer. Combining strength, security and durability with the slimmest sight-lines on the market, these panoramic bi-folding doors are both stunning and practical. The XP Vision can replicate the large glass panels of our sliding patio doors, but with the flexibility to open the entire space for a seamless transition from inside to out.

Get in touch to discuss your project today.

design & engineering

This world class, highly insulated folding door has been designed with a huge maximum panel width of 1500mm and a typical sight-line of just 105mm meaning it is a truly groundbreaking product that is perfectly suited to luxury new-builds, extensions and replacement installations.

Technological advancements based on consumer and market demands has led us to offer this leading innovation in bi-folding doors. Minimal frame, maximum light, security and energy efficiency are all key factors in designing doors and windows into buildings and the XP Vision ticks all the boxes for a stunning, and impressive glazing product that can enhance any property.

premium specification

The XP Vision boasts numerous features that other folding products do not. Slim sightlines and the ability to create huge, wide folding door panels are obvious benefits, but there are several nuances within the product that increase specification of the door even more.

An increased profile depth of 85mm packed with foam inserts, and thermal gaskets within all the panels greatly increase the energy efficiency of the door. The intermediate locking panels boast quadruple catches, which interlock the panels together, as well shoot-bolt locking rods in the top and bottom of the frame. The door panels themselves are held open with a heavy duty panel catch, plus catches at the head and foot of the outer frame when the door is stacked fully open. There is even an in-fill gasket under the traffic door to ensure debris doesn’t build up in the track when using the lead door to come in and out of the property.

We highly recommend seeing the product first hand, and our expert staff are available to talk through the many benefits of this product and why it is the leading folding door product in the market place.

The XP Vision can be viewed first hand in all of our showrooms, and at the various exhibitions we attend throughout the year.

Alt test

Comprehensive 10 Year Guarantee on the product & our installation

The largest individual bifold door panels available in the world.

Exceeding thermal regulations

The slimmest bi-folding door in the market place.

KEY FEATURES

  • Significant energy and cost saving due to the excellent thermal insulation and U-values (as low as 1.0 W/m2K).
  • Profiles filled with energy bar and PE insulation foam for enhanced thermal performance.
  • Quadruple locking catches for enhanced security.
  • Strong and secure: multi-point locking on master door with steel shoot-bolt locking rods in all intermediate panels.

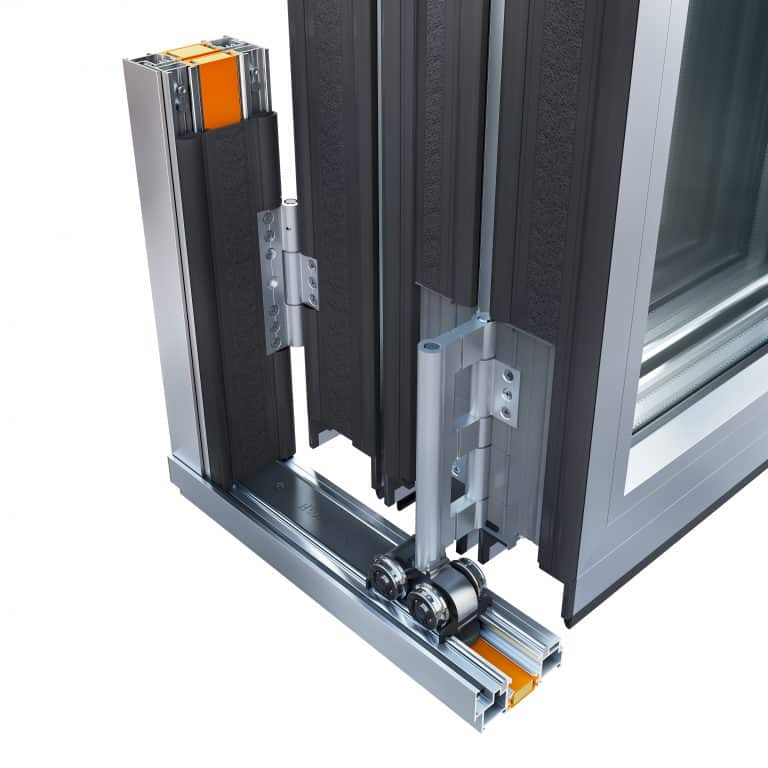

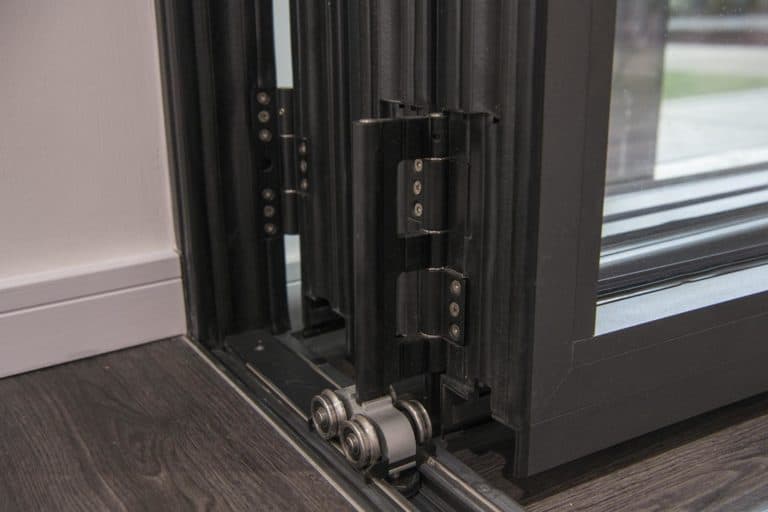

  • Bottom hung with stainless steel wheels and high precision bearings.
  • 105mm typical sight-line meaning minimal frames between the glass panels.
  • 200kg maximum panel weight.
  • Maximum panel height 3300mm.
  • Maximum panel width 1500mm.
  • Largest panel widths available in the market place of 1.5 metres meaning the following configurations can be achieved: 4.5 metres with 3 panels, 6m with 4 panels and 7.5m with 5 panels. These huge panel widths will look like large sliding doors but with the flexibility of being able to open the entire space.

unique benefits

From aesthetics to security, from practicality to thermal efficiency, the XP Vision is unrivalled when it comes to the specification of modern-day bi-folding doors.

The XP Vision boasts catches at the foot & head of the doors outer frame that secures the folding panels in place when they are fully stacked open.

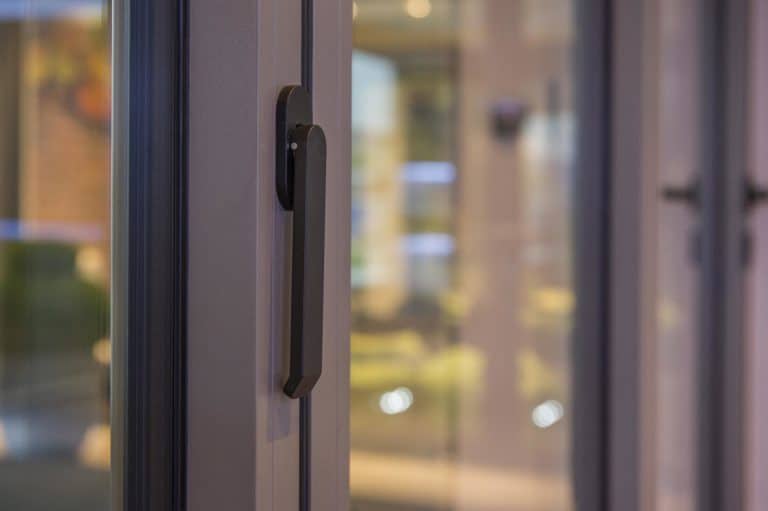

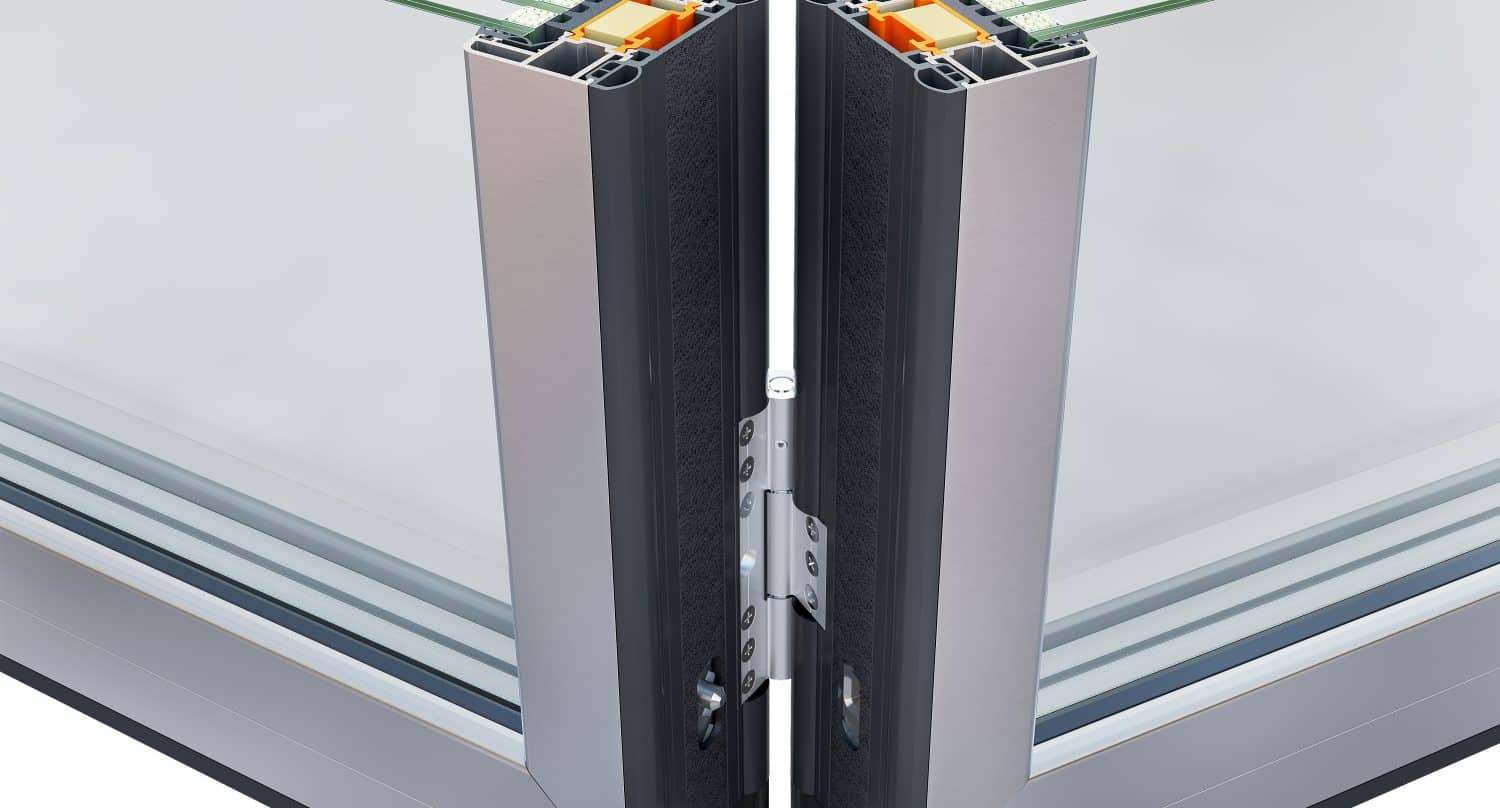

The flat handle in the intermediate panels operates the unique four point lock, which interlocks the panels & shoot-bolts into top and bottom track

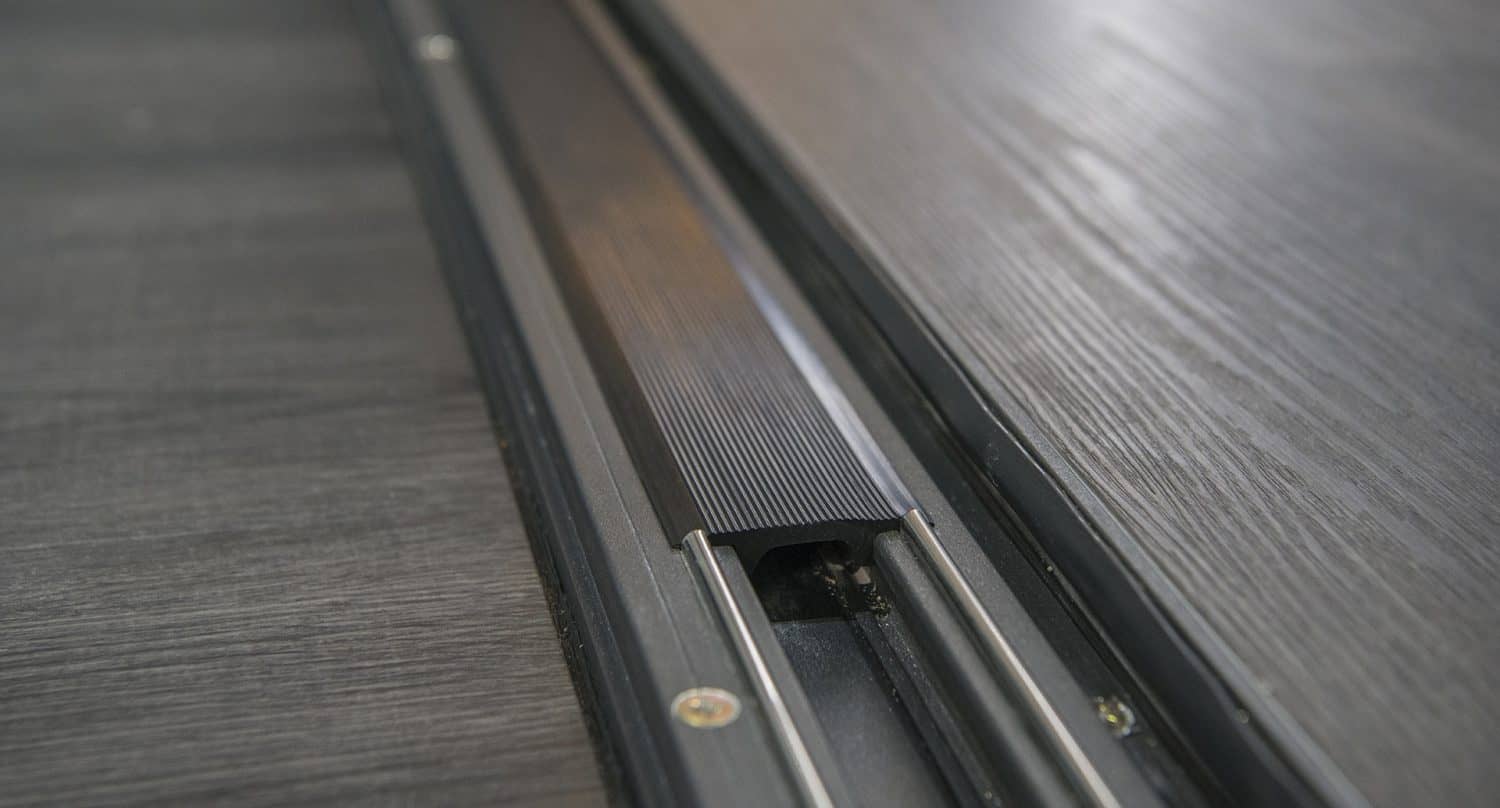

The in-fill gasket under the traffic door ensures no debris gets into the track as you're coming in and out.

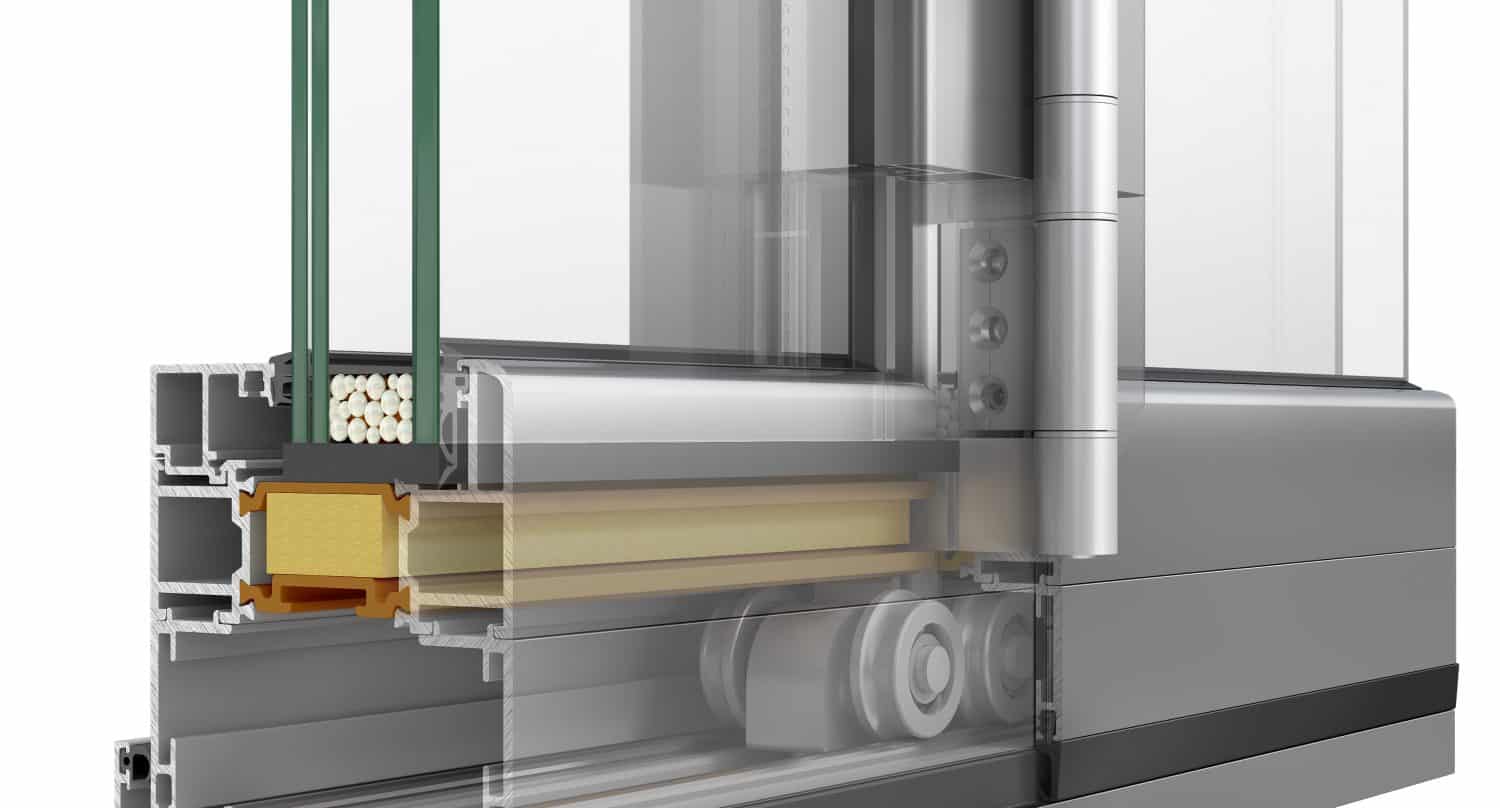

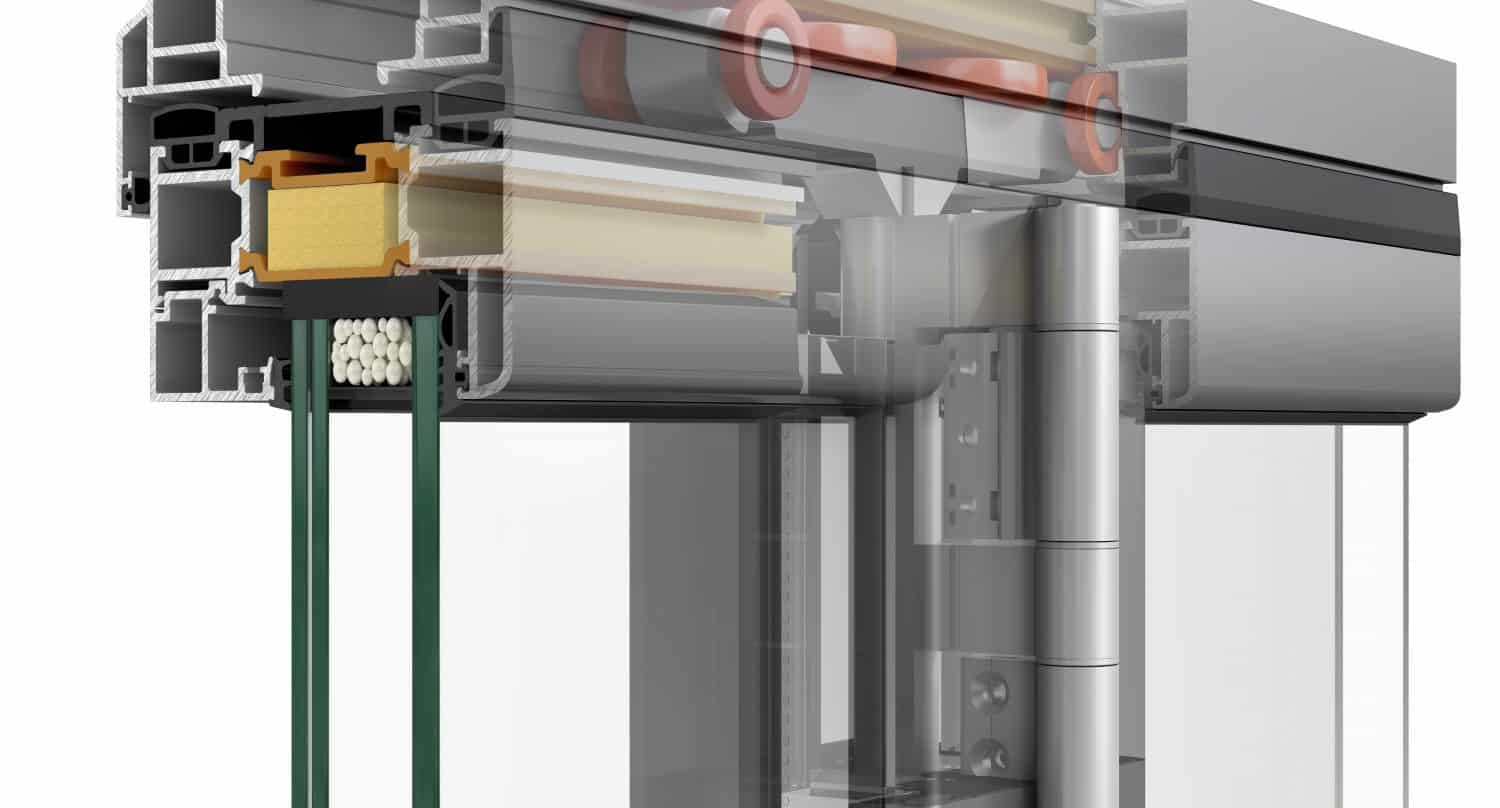

Insulation gaskets inserted into the profiles ensure the XP Vision is incredibly thermally efficient.

XP Vision Frequently Asked Questions

Can I have a different RAL colour inside to out?

Yes, we can offer our bi-folding doors in a dual colour finish. The lead times for dual colour profiles do increase considerably though, so if you want a different colour finish inside & out contact our sales team.

Do you offer triple glazing?

Yes we can offer triple glazing. As standard we offer high performance Low E glazing, which is excellent at keeping the heat within a property, but we are happy to provide quotation’s & supply triple glazing if required or specified. The XP Vision is our most thermally efficient bi-folding door so ideal for combining with triple glazing when extremely low overall U values have been specified.

Can you have blinds in the bi-folds?

Yes, we can offer integral blinds throughout our range of bi-folding doors. Manual, solar & electronically operated Uniblinds are available with our XP View & XP10 range of bifolds. The XP Vision is not available with electronically operated Uniblinds but our solar option is available and it’s touch & remote control operation is equally as impressive.

Can you have an everyday door?

Yes, it is possible to incorporate an everyday access into a bi-folding door. An odd number of panels always offers this solution, with an even number panels it can be achieved with certain opening configurations.

Can you have a cat flap in a bifold door?

Yes, we can create hole in the glass itself, which can then incorporate a cat flap into it.

What is a standard height?

Industry standard height is 2100mm. All our bi-folding doors are bespoke so we can manufacture them to a specific height and always recommend trying to gain additional height in your bifolding doors because the taller the doors the slimmer they look and the natural light is gained from them.

A PERFECT COMBINATION

Bi-folding doors with Uniblinds

Integral blinds are the perfect solution for bi-folding doors. Easy to use and seamlessly integrated, they’re available as manual, solar and battery powered, and mains powered. Ideal for privacy-screening and controlling light, Uniblinds are contained within the window itself and can be concealed discreetly when not in use, and stay out of the way when the doors are opened.

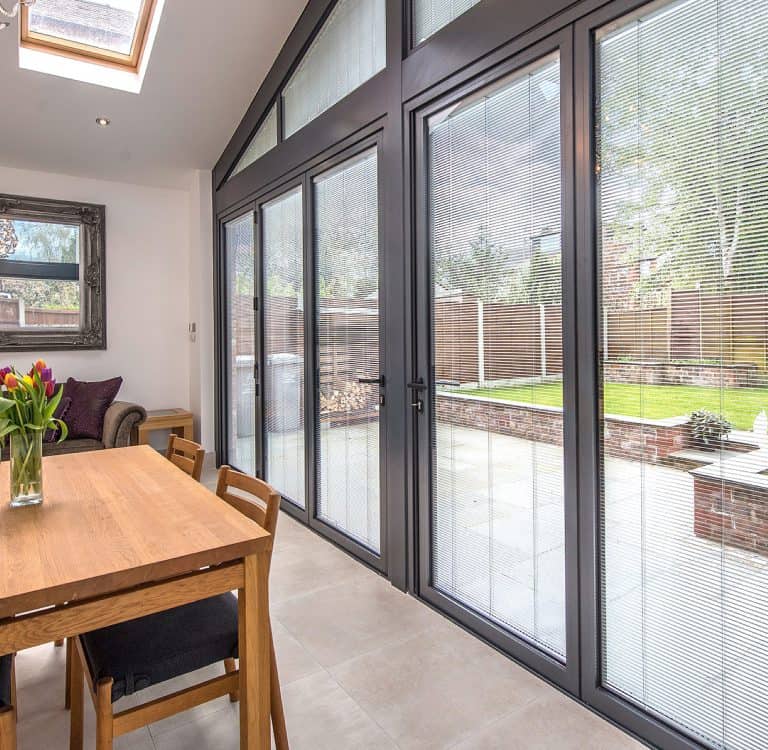

Bi-folding doors with integral blinds in a white dining room

Specification

  • Frame depth of 85mm
  • Typical sightline of just 105mm
  • Suitable for commercial/heavy use applications.
  • Suitable for large expanses well in excess of 10 metres.
  • Rounded external profiles for attractive aesthetics.
  • Maximum panel height of 3300mm
  • Maximum panel width of 1500mm
  • Largest panel widths available in the market place of 1.5 metres, meaning the following configurations can be achieved:
    4.5 metres with 3 panels, 6m with 4 panels and 7.5m with 5 panels. These huge panel widths will look like large sliding doors but with the flexibility of being able to open the entire space.
  • Adjustable rebates within the side jambs.

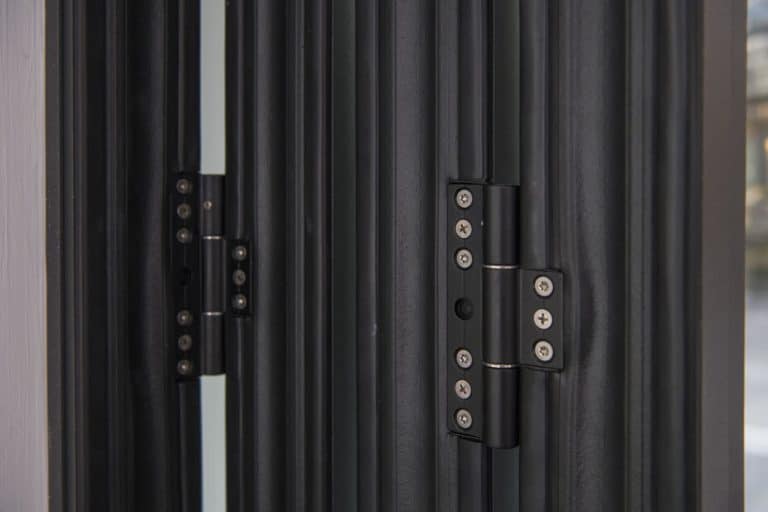

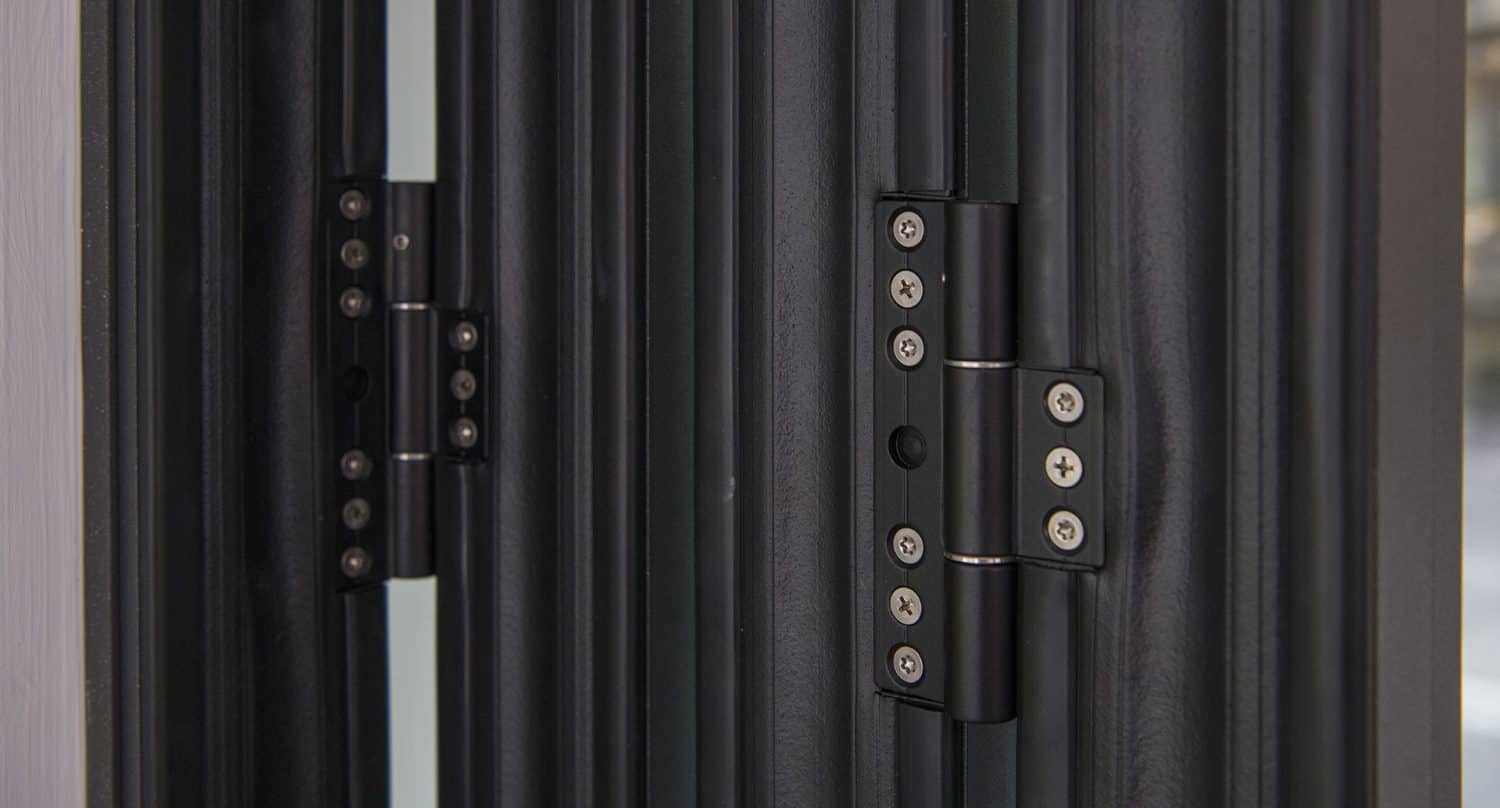

  • PAS 24 hinges and internal pull handles.
  • In-line flat handles on all intermediate panels.
  • 200kg maximum panel weight
  • Profiles filled with energy bar and PE insulation foam for enhanced thermal performance.
  • Significant energy and cost saving due to the excellent thermal insulation and U-values (as low as 1.0 W/m2K)
  • Quadruple locking catches for enhanced security.
  • PAS24 tested.
  • Moving corner post available.
  • High security, minimal maintenance and fully guaranteed.
  • Full complement of doors, windows and roofs to suit.
  • Manufactured in-house by the UK’s largest and most trusted manufacturer and installer of bespoke aluminium bi-folding doors, sliding doors and windows.

Get the full specifications

We'll email you a link to download the full specifications

  • By requesting this email you are agreeing to allow Express Bi-Folding Doors to contact you with other information.

WHAT'S YOUR COLOUR

The right colour can mean the difference between a show-stopping property and a run-of-the-mill one. At Express, you can choose from a variety of colours and finishes, so you can have the exact colour you wish for your panoramic bi-fold doors.

The doors are powder-coated, so durability is never an issue. It provides a lasting finish that’s guaranteed for 10 years – it won’t peel off or lose it’s colour.

Whether you choose from our three ranges of popular colours, or pick from over 200 RAL colours, or you choose a wood or metal effect finish, the choice is yours. Browse our colour options today.

Standard
range

Essence
range

Elite
range

Standard range

Want a fast turnaround and a premium look? We keep large stocks of our three most RAL popular colours.

9016 Traffic White

9005 Jet Black

7016 Anthracite Grey

Essence range

Developed by our design experts, this unique range of seven metallic colours have proved to be our
most popular special finishes and are so exclusive they’re not even available within the RAL range.

Thunder Grey

Magma Grey

Stove Black

Smoke Grey

Granite

Mocha

Galaxy

Elite range

The rest of our special colours offering enhanced durability and a premium textured metallic finish for added sophistication.

Emerald green

Agate green

Stone Grey

Trojan Bronze

Space Grey

Ivory Cream

Umber Brown

Pearl White

Midnight Blue

Vintage Cream

Noir

Jade

Starlight

Mist

Storm

Tempest

There are also up to 200 RAL colours to choose from including slight discounts for RAL 9007, RAL 7021 & RAL 7032 due to their popularity.

9007 Silver Grey

7021 Black Grey

7032 Pebble Grey

SAFETY & SECURITY

SOLIDITY COMES AS STANDARD

Each panel of your aluminium bi-folding door is light, but solid. Injected with a liquid component that sets solid during the manufacturing process, our bi-folding doors are secure and reliable.

Our doors are designed with security in mind with features such as:

  • Multi point locks ensuring the door is strong and secure
  • Concealed gearing that cannot be seen or attacked when the door is closed
  • The system is glazed from the inside

DESIGNED FOR SAFETY

Your bi-folding doors will get a lot of use – that’s why we’ve designed them with the safety of you and your family in mind. We’ve thought about everything from stainless steel runners designed to be installed flush to your floor to eliminate trip hazards, to a magnetic panel catch to hold the doors in place.

TOUGH LOCKS

Security Lock Barrel Cylinders as standard

No industry-leading doors are complete without security lock barrel cylinders. We offer anti-snap, anti-drill, anti-pick and anti-bump lock cylinders as standard throughout our entire range of doors, including the XP Vision. Our 3-star diamond-rated BSI cylinders exceed the 2-star standard for Secured by Design accreditation, so you know you’re in safe hands with us. We even supply them in doors with half a barrel so internally your aluminium bi-folding doors are just as secure on the inside as the outside.

The keys for these cylinders can be cut at any locksmith, unlike other Secured by Design standard lock barrels, which need a specific lock card to have further keys cut. Supplied by one of the world’s leading manufacturers of lock cylinders, which we think is the perfect complement to our industry leading range of products.

Certass CQ Assured Scheme

We are proud to be members of the Certass Certified Quality assured scheme, which is a quality assurance scheme designed to give you confidence in the companies you choose to work with for your renovation, maintenance or improvement projects.

The Certass CQ scheme isn’t a building regulations document but offers peace of mind for the customer that their works have been installed correctly and to the relevant industry standards. As part of the scheme our installations are independently audited by Certass every month and a certificate of conformity is sent to our customers upon the completion of our works. Included in the CQ scheme is a 10-year insurance backed guarantee and a 120 day deposit protection policy.

If you would like your installation to be included in the CQ scheme and receive a personalised certificate of workmanship quality please ask your sales rep.

CERTASS COMPETENT PERSONS SCHEME
Our replacement installations in England a Wales are backed by the Certass Competent Person Scheme and after the completion of our woks our customers receive a personalised Certass branded building regulations certificate reaffirming that the works have been completed to the relevant industry standards. Also included is a 10-year insurance backed guarantee to sit alongside our own comprehensive guarantee:

• The certification includes works where the removal and reinstallation of windows and doors are completed and installed by Express.

• The scheme covers replacement installations but does not include extensions and newbuild projects.

• The scheme covers our replacement works across England and Wales.
