LESS IS DEFINITELY MORE

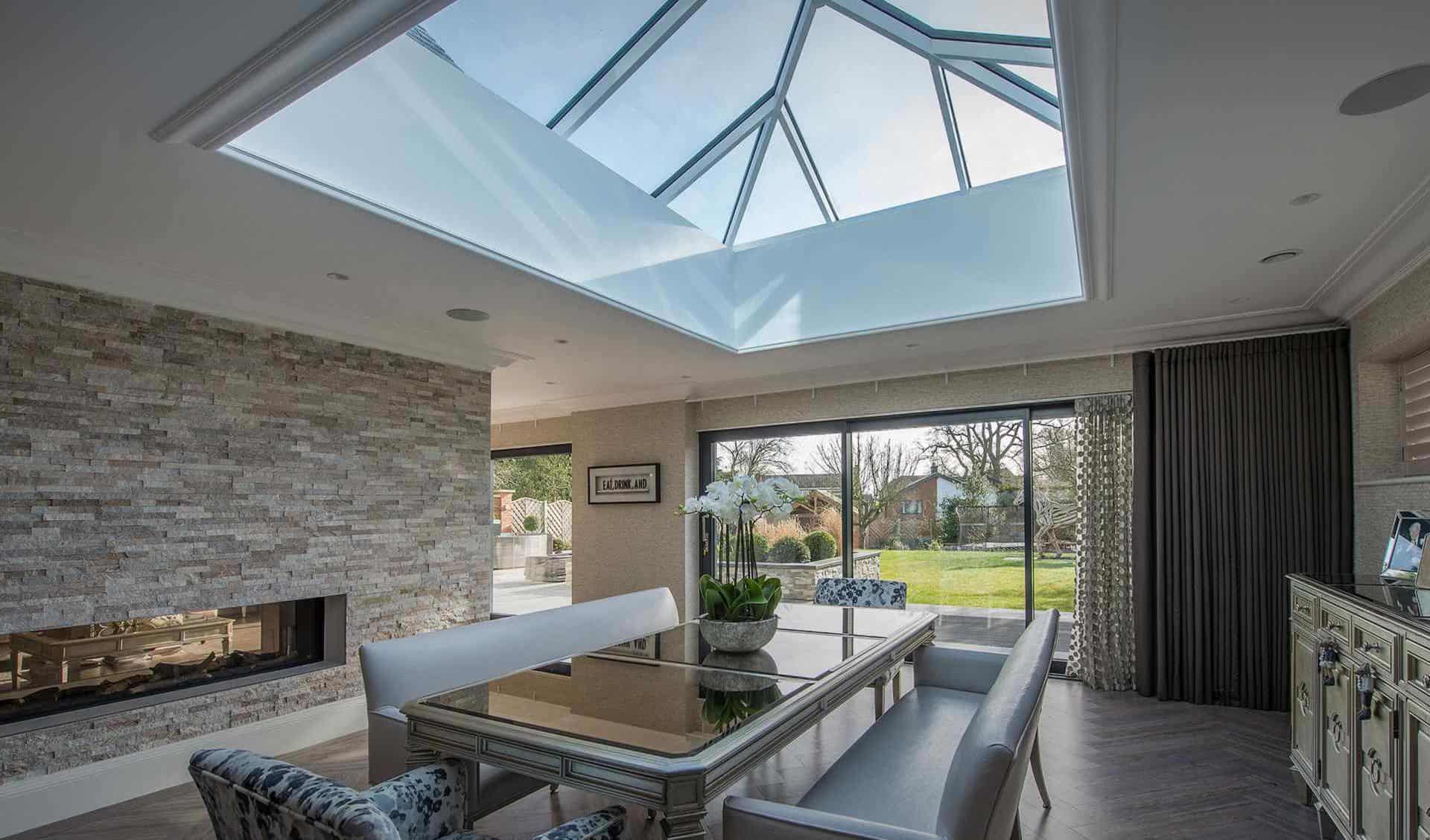

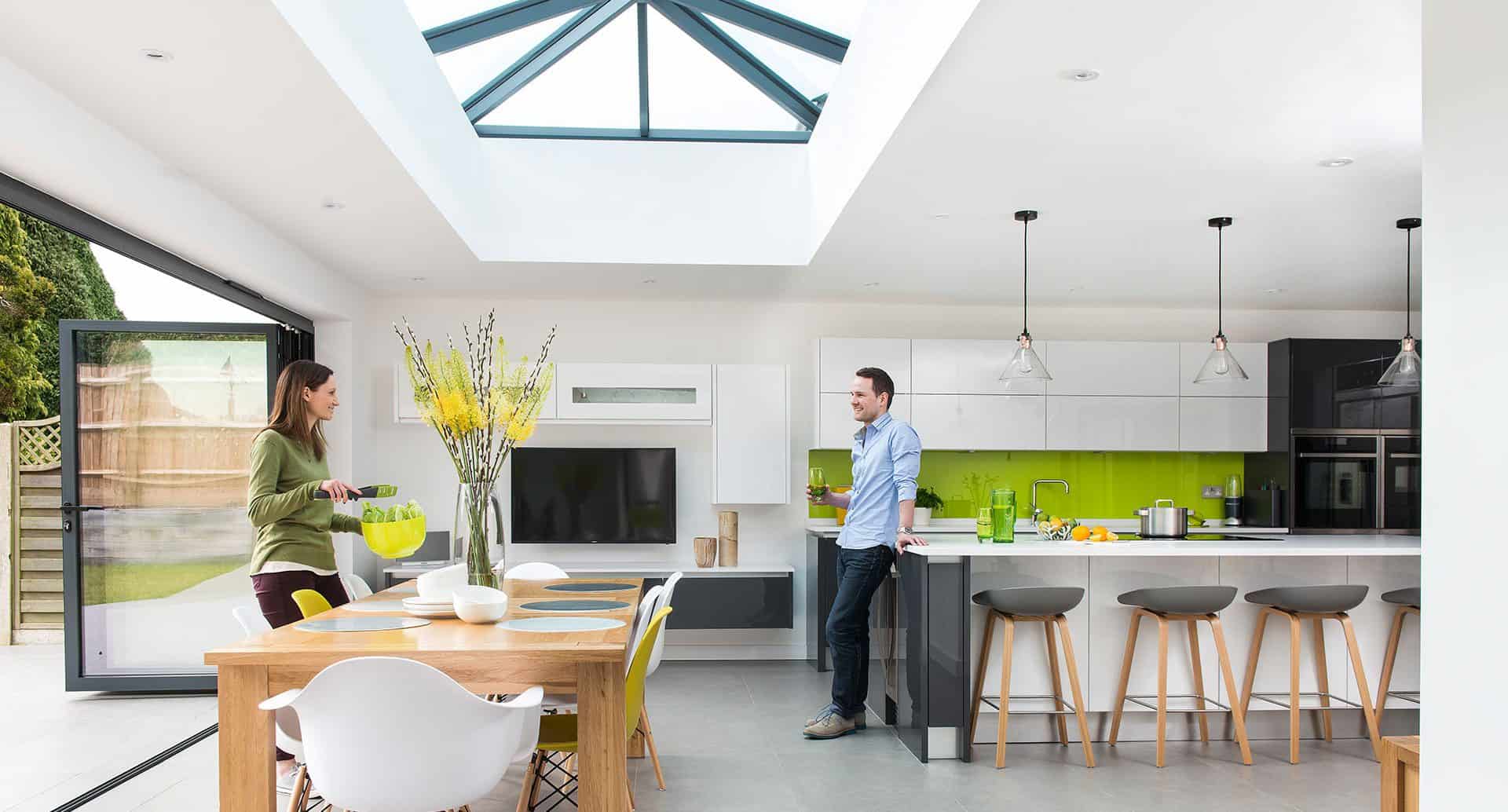

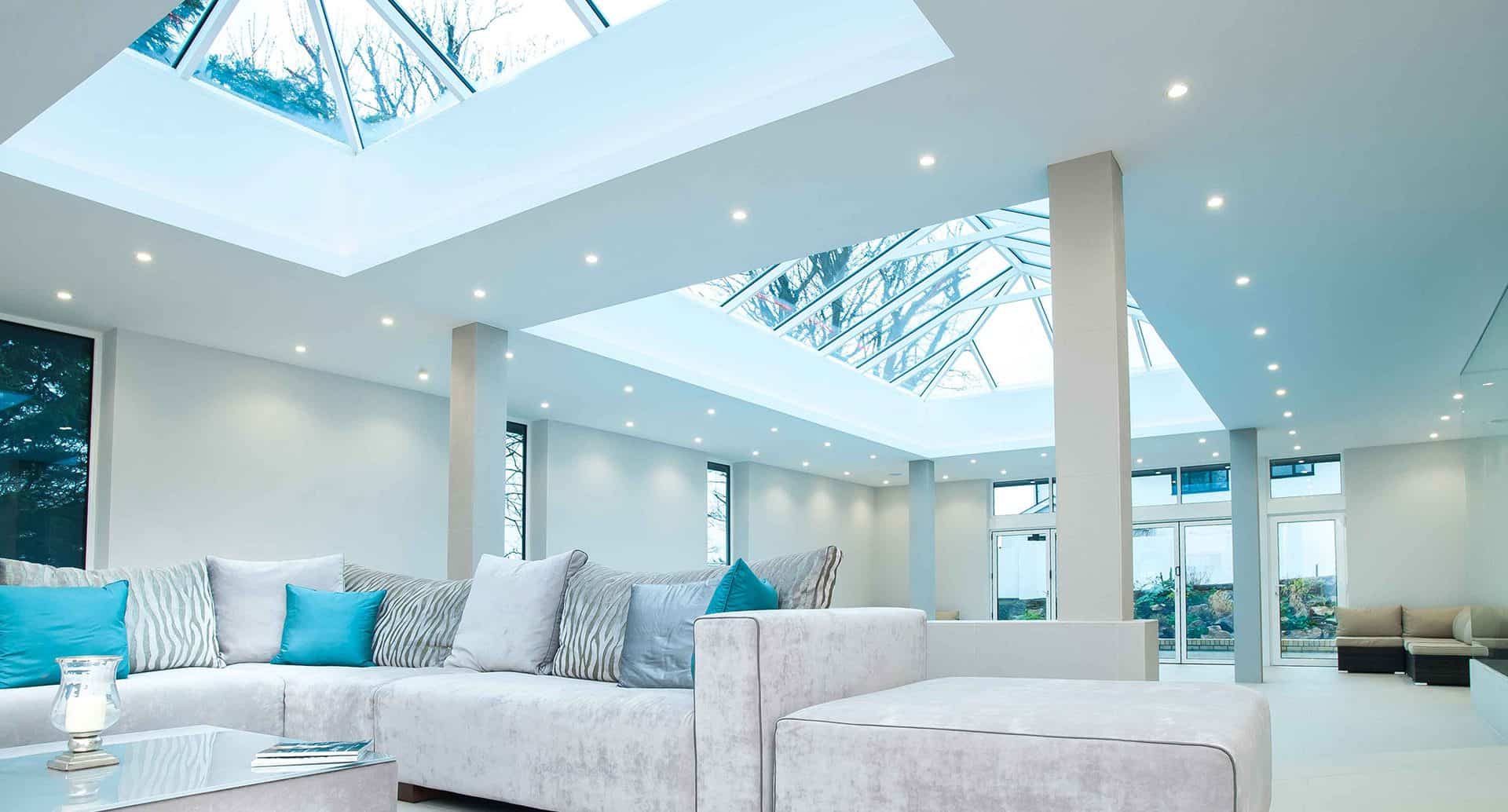

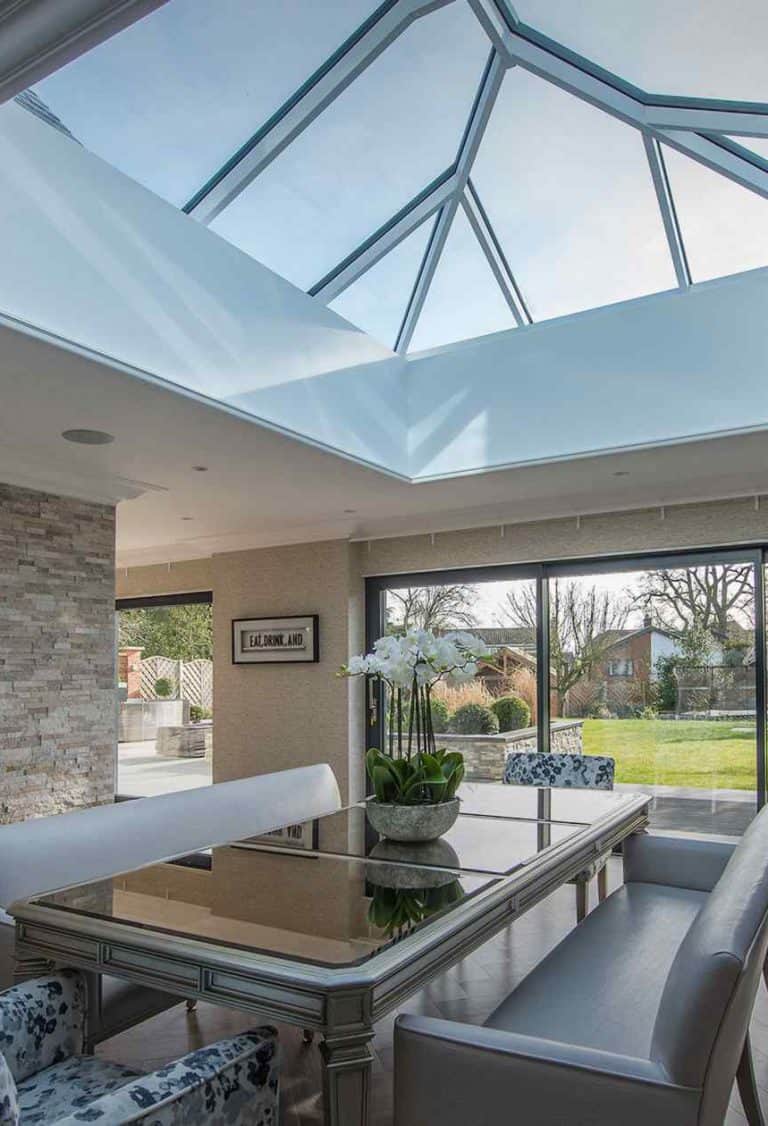

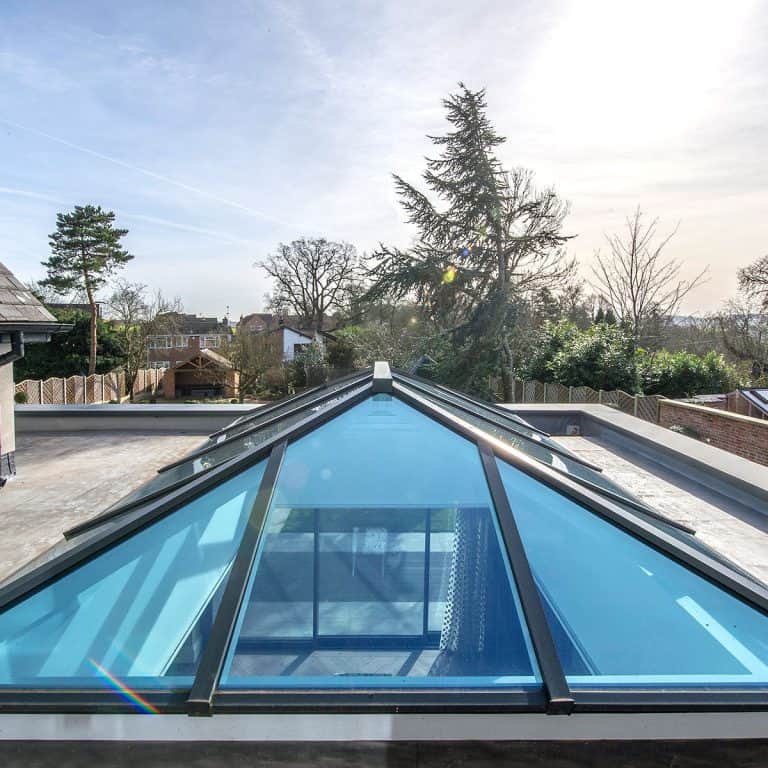

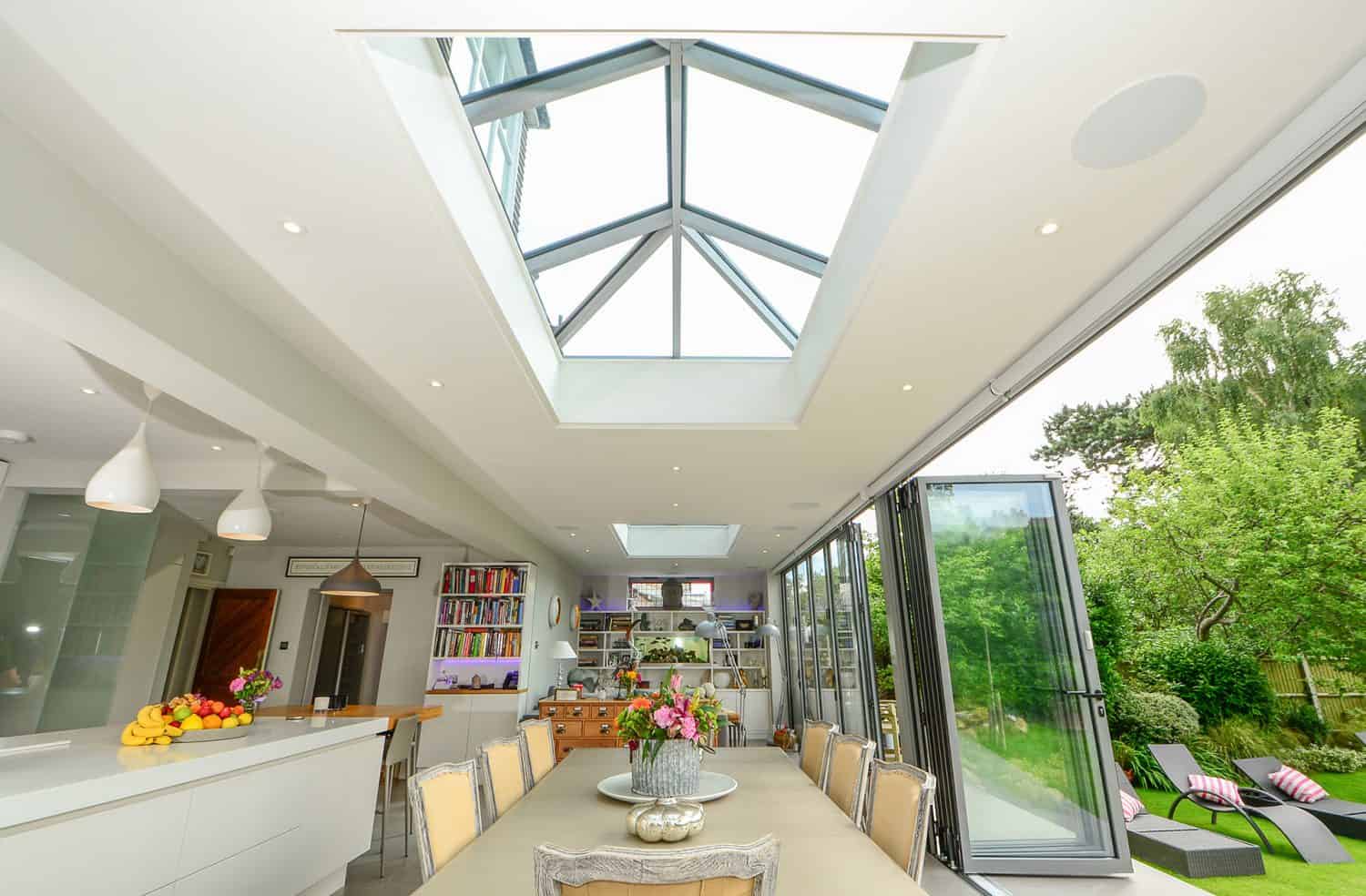

The Sky-Line Skylight range boasts ultra slim sight-lines and narrow frames. This means your roof lantern has less frame, more glass, offering open views and more natural light.
DESIGN & ENGINEERING

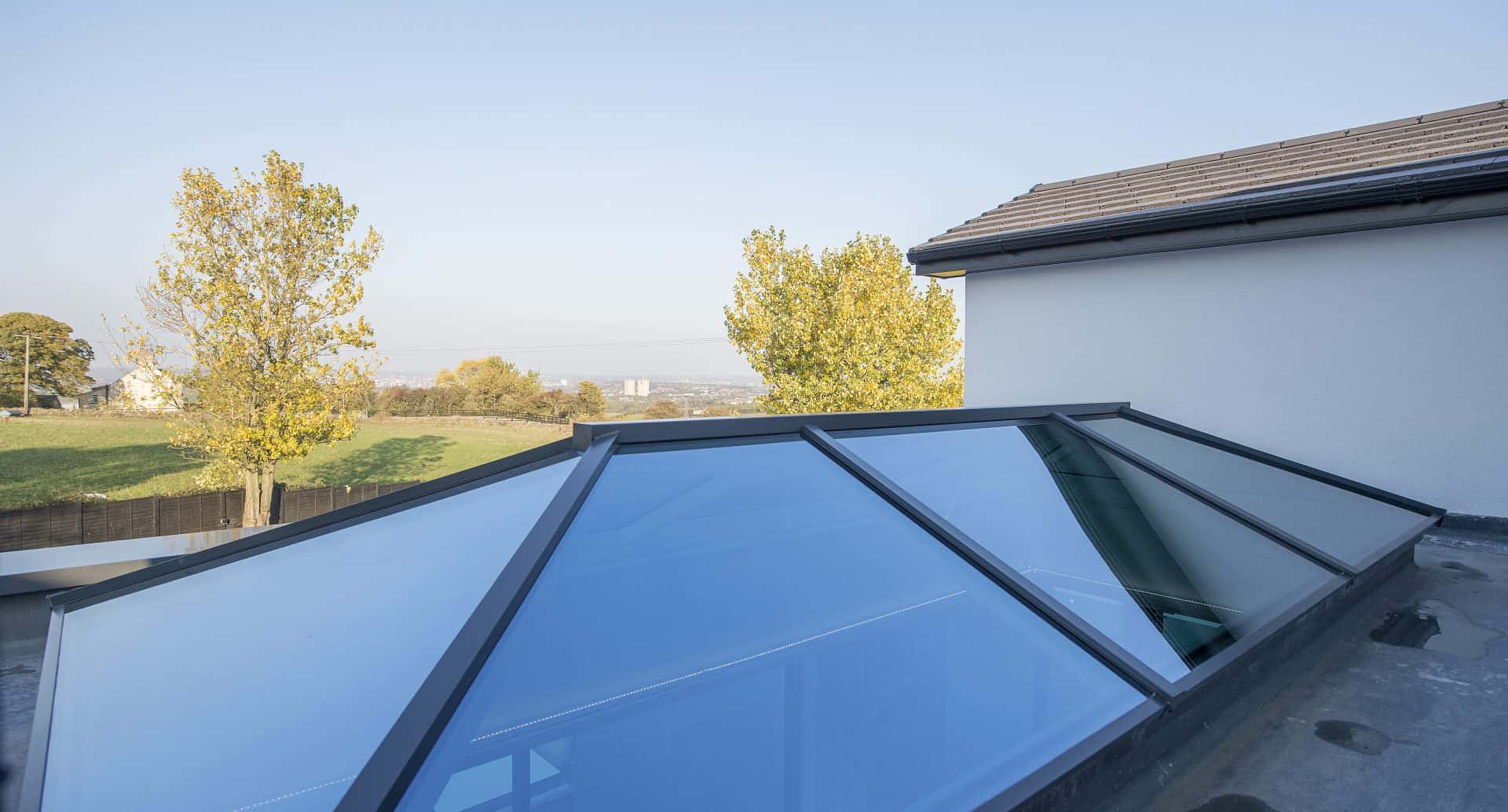

With a thermally broken aluminium frame, the Sky-line range of roof lanterns is energy efficient and warm when the weather turns cold, so you can enjoy your brighter home all year round. Combined with glazing units up to 44mm deep, the Sky-line skylight can be triple glazed, and seamlessly reinforced with hidden supports. This lets you enjoy a warm and bright home, without sacrificing light or panoramic views.
Minimalist design
Full thermally broken aluminium roofing system
Slender sightlines and sleek modern aesthetic
Superb thermal performance
KEY FEATURES

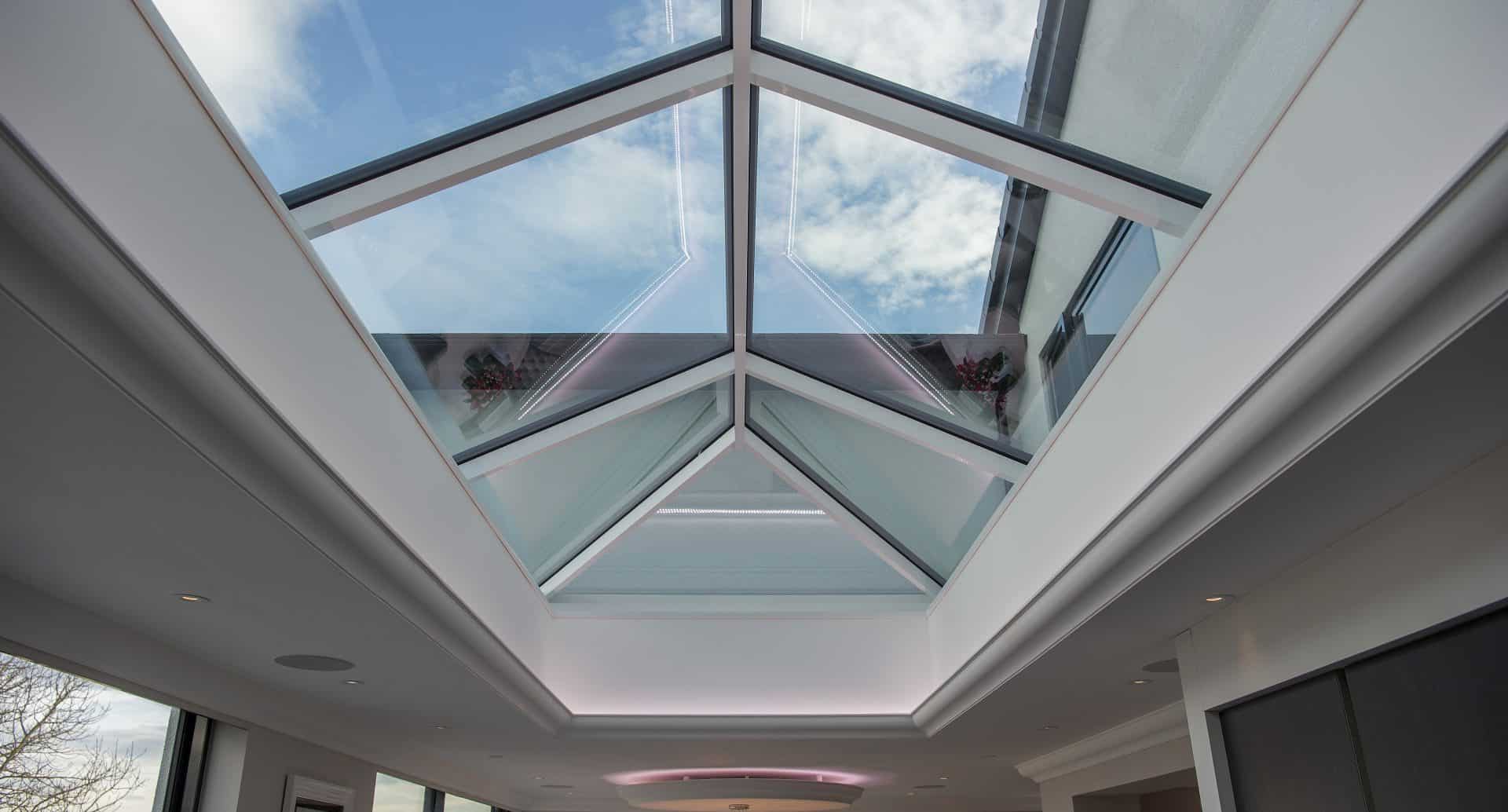

- Super strong, light, 40mm aluminium box rafters create slim, elegant roof profiles with excellent thermal performance which, compared to conventional roofs, minimises the visible width and sightlines of rafters by 30% and the main feature ridge by 70%
- The roof lantern has no internal pan, nor hoods or caps. Being much slimmer than other lanterns it allows for more glass and looks much more aesthetically pleasing.
- It is a full thermally broken aluminium roof system with the rafters on the inside of the roof.
- Bolster bars (additional supports for the roof spars) are never required because the spars are hollow meaning additional steel reinforcements can be inserted into them – thus increasing the strength of the roof without detracting from its appearance.
- Matching sightlines throughout the entire roof with the ridge and spars all just 40mm.
- The overall U value of the roof is 0.1 higher than the glazing within it. Glazing the roof with Advance 1.0 glass will result in an overall U value of 1.1.
- The roof can be reinforced without the need for ugly tie bars using hidden supports placed right up against the ridge which you barely notice. For large reinforcements a rafter support can be used which looks like part of the roof.
Specification
- Super strong, light, 40mm aluminium box rafters create slim, elegant roof profiles with excellent thermal performance which, compared to conventional roofs, minimises the visible width and sightlines of rafters by 30% and the main feature ridge by 70%
- The roof has no internal pan, nor hoods or caps. Being much slimmer than other roof lanterns it allows for more glass and looks much more aesthetically pleasing.
- Option of traditional or flat external cappings. The flat cappings give a really modern and contemporary look to the external face of the lantern.
- It is a full thermally broken aluminium roof system with the rafters on the inside of the roof.
- Bolster bars (additional supports for the roof spars) are never required because the spars are hollow meaning additional steel reinforcements can be inserted into them – thus increasing the strength of the roof without detracting from its appearance.
- The roof does not need a cill as it is a designed with a small overhang which will disperse rainwater.
- Standard colours are white, black and 7016.
- Sightlines all 40mm, (competitors are 60mm with 150mm for the ridge).
- The aluminium rafters have a u value of 1.5.
- The roof vents are tested to 300 Pascals.
- The roof is 33% stronger than competitors for wind resistance and 25% stronger for snow loads.
- The system is fully BBA tested.
- The roof can be reinforced without the need for ugly tie bars using hidden supports placed right up against the ridge which you barely notice. For large reinforcements a rafter support can be used which looks like part of the roof.
- The roof can house a glazing unit up to 44mm so triple glazing is possible with small roofs
Get the full specifications
We'll email you a link to download the full specifications
Sky-Line Roof Lantern FAQ's
What is the maximum size?
The maximum width of the Sky-line roof lantern is 4500mm wide, there is no maximum length as the product can be continuous in length.
Can you have an opening vent?
No, the design of the roof is based around minimal sightlines and optimum light so an opening vent is not available.
Does the lantern have a fixed pitch?
The Skyline Lantern is installed with a 25 degree pitch as standard, but can also be manufactured with a pitch of 17.5 degrees if required.
What size does the roofs upstand need to be?
The upstand needs to be a minimum height of 150mm to comply with building regulations and we recommended a minimum depth of 70mm.
What glass types are available?
Standard glass options available with our roofs are low E glass with a U value of 1.1 complete with Advance Roof Blue or Advance Roof Neutral (Neutral being a grey tint), which offers a solar reflective coating. We offer self cleaning glass as standard for our roofing products.
Can the roof be dual colour?
Yes, the roof is available with a different colour on the external and internal faces of the roof.
Can you hang light fittings from the roof?
No, the Sky-line roof has not been tested for a point load on any part of the structure of the roof and the possibility of the roof becoming live.
WHAT'S YOUR COLOUR
Our three ranges offer some stunning popular colour finishes, but we also offer the option of over 200 RAL colours so you can pick the exact colour you wish to match – or contrast – with the rest of your home. There are also finishes to choose including wood grain and metallic effects.
And because they’re powder-coated, the durability of your roof lantern is never an issue. The colour is baked-on, providing a lasting finish that won’t peel off or lose its colour – and is guaranteed for 10 years.
Standard
range
Essence
range
Elite
range
Standard range
Want a fast turnaround and a premium look? We keep large stocks of our three most RAL popular colours.
9016 Traffic White
9005 Jet Black
7016 Anthracite Grey
Essence range
Developed by our design experts, our unique range of seven metallic colours has proved to be our most popular special finishes. They’re so exclusive they’re not even available within our standard RAL range.
Thunder Grey
Magma Grey
Stove Black
Smoke Grey
Granite
Mocha
Galaxy
Elite range
Our final selection of special colours offers enhanced durability and a premium textured metallic finish for added sophistication.
Emerald green
Agate green
Stone Grey
Trojan Bronze
Space Grey
Ivory Cream
Umber Brown
Pearl White
Midnight Blue
Vintage Cream
Noir
Jade
Starlight
Mist
Storm
Tempest
There are also up to 200 RAL colours to choose from including slight discounts for RAL 9007, RAL 7021 & RAL 7032 due to their popularity.
9007 Silver Grey
7021 Black Grey
7032 Pebble Grey
SAFETY & SECURITY
Our Sky-Line Roof Skylight is designed with security in mind.Toughened glass is offered as standard regardless of size of window and it is rigorously tested for the most severe weather conditions. Our dedication to quality engineering means that we offer a 10 year guarantee on all our products.
We include a scaffold tower in every supply and fit quotation and the roof lantern is built-up on site for ease of handling & health and safety.
Certass CQ Assured Scheme
We are members of the Certass Certified Quality Assured scheme which is a quality assurance scheme for reputable and trustworthy Companies, designed to give consumers additional confidence when working with Companies for their renovation, maintenance and improvement projects.
The Certass CQ scheme isn’t a building regulations document but offers peace of mind for the customer that their works have been installed correctly and to the relevant industry standards. As part of the scheme our installations are independently audited by Certass every month and a certificate of conformity is sent to our customers upon the completion of our works. Included in the CQ scheme is a 10-year insurance backed guarantee and a 120 day deposit protection policy.
If you would like your installation to be included in the CQ scheme and receive a personalised certificate of workmanship quality please ask your sales rep.
CERTASS COMPETENT PERSONS SCHEME
Our replacement installations in England a Wales are backed by the Certass Competent Person Scheme and after the completion of our woks our customers receive a personalised Certass branded building regulations certificate reaffirming that the works have been completed to the relevant industry standards. Also included is a 10-year insurance backed guarantee to sit alongside our own comprehensive guarantee:
• The certification includes works where the removal and reinstallation of windows and doors are completed and installed by Express.
• The scheme covers replacement installations but does not include extensions and newbuild projects.
• The scheme covers our replacement works across England and Wales.
See more

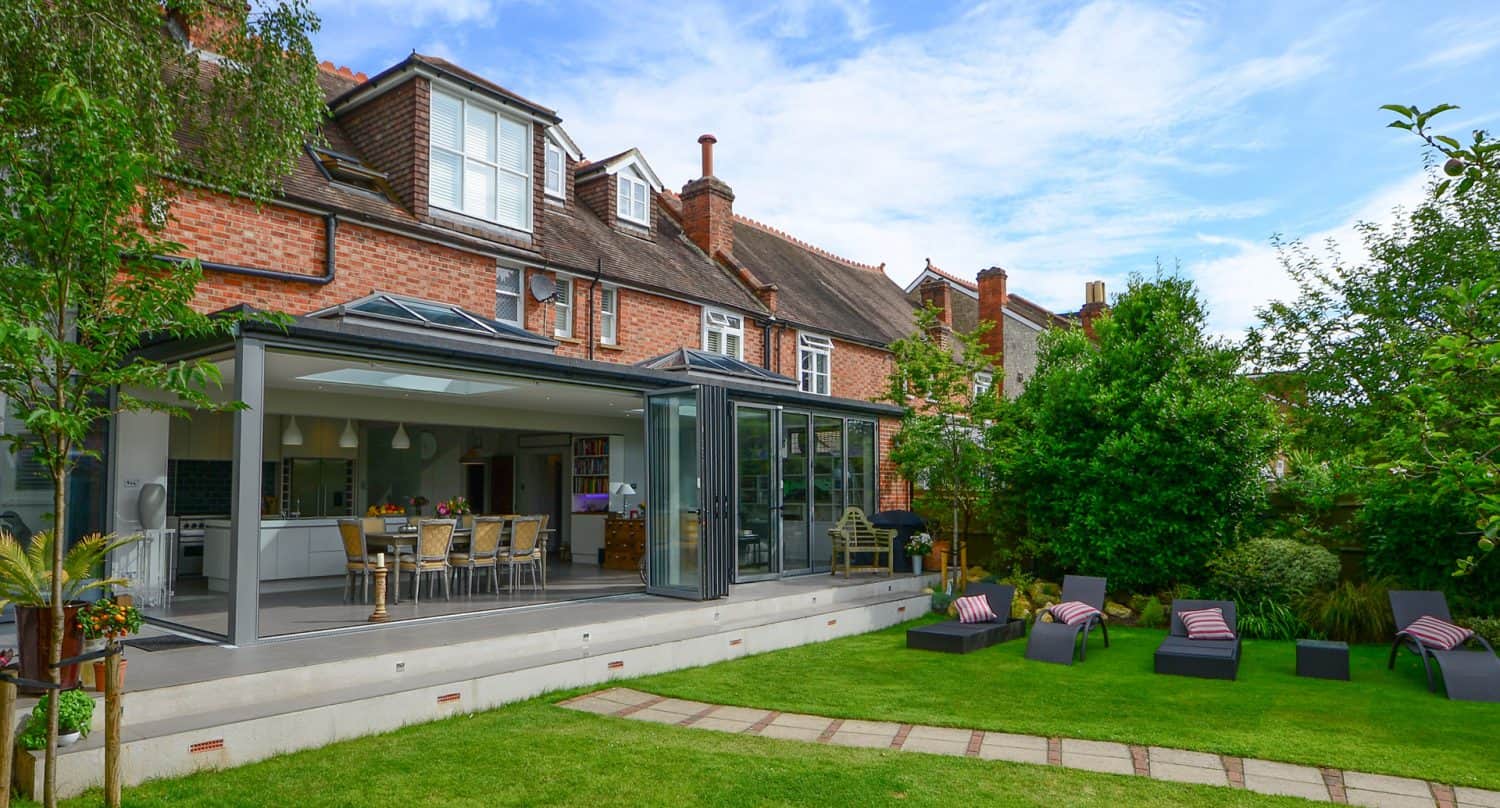

Kingsgate House
