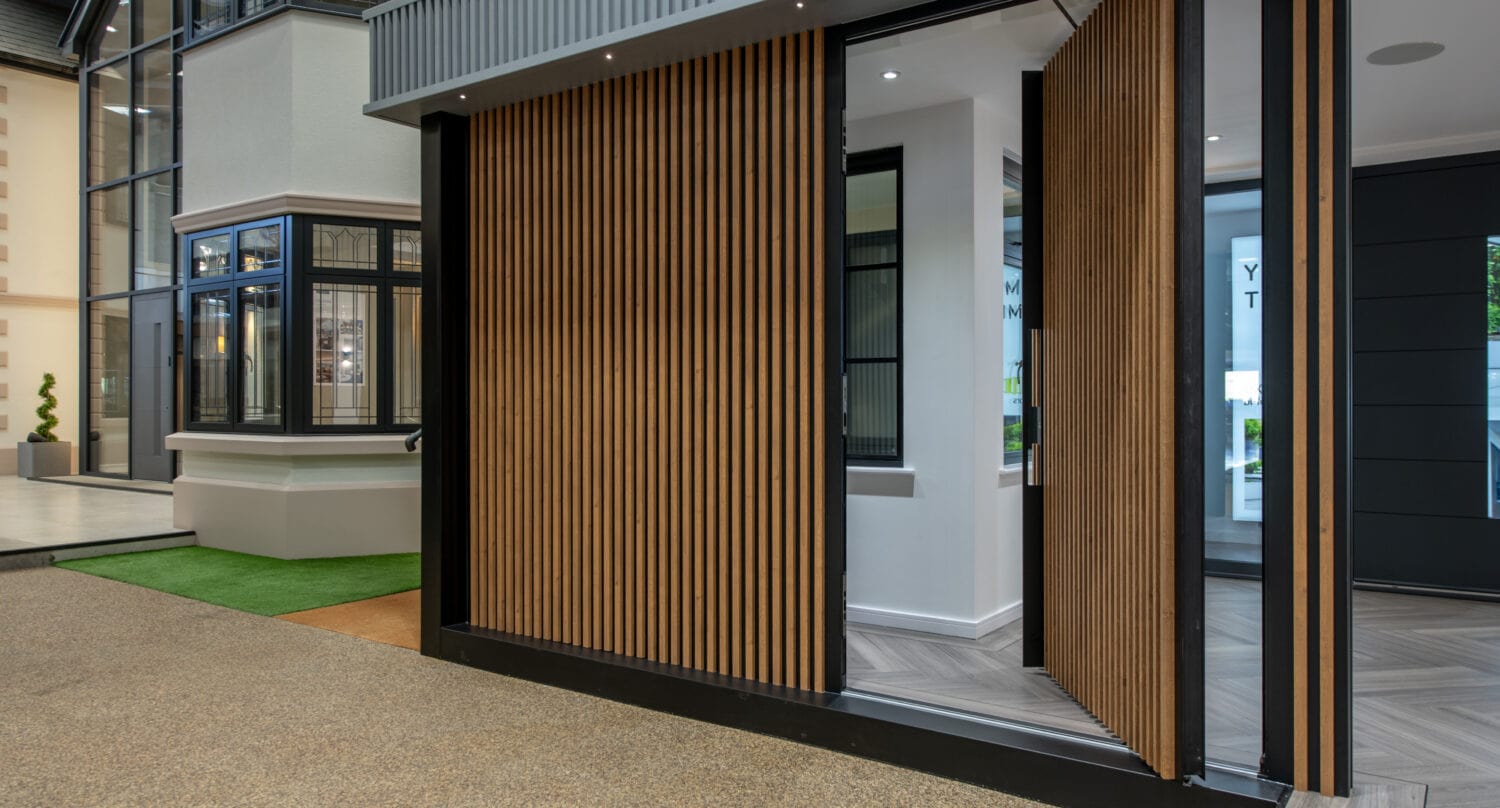

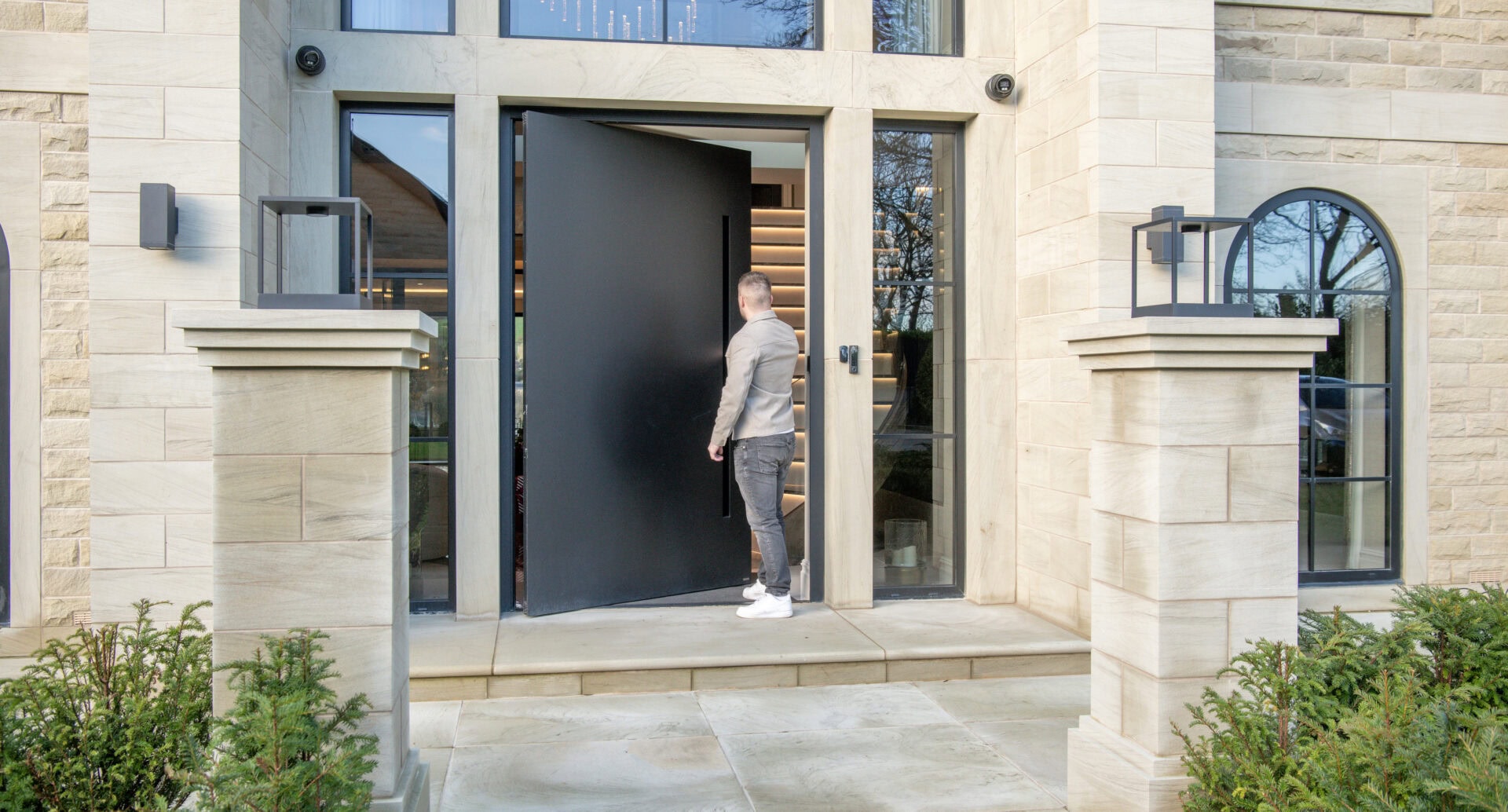

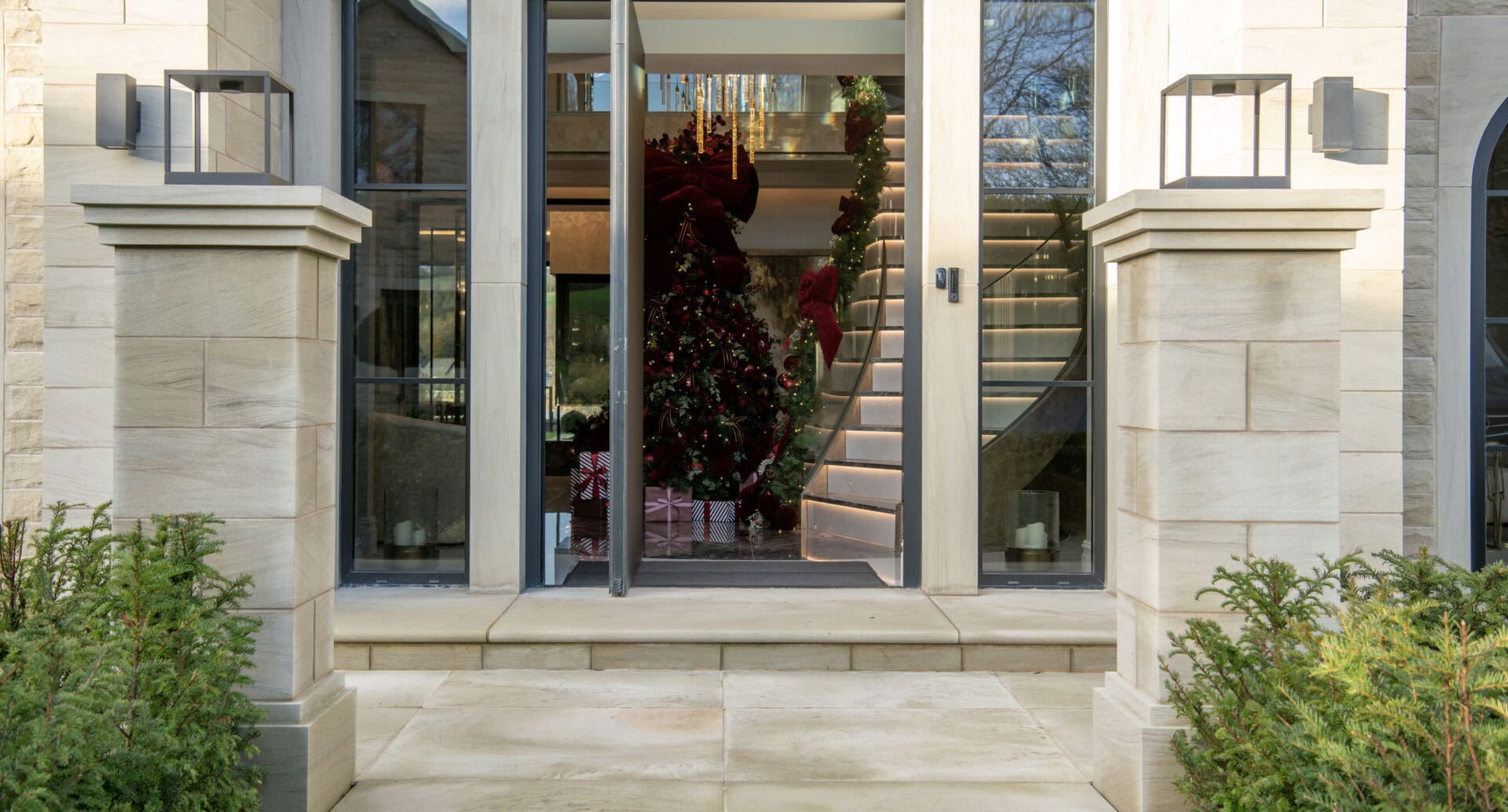

Pivot doors
modern aesthetics coupled with impressive functionality

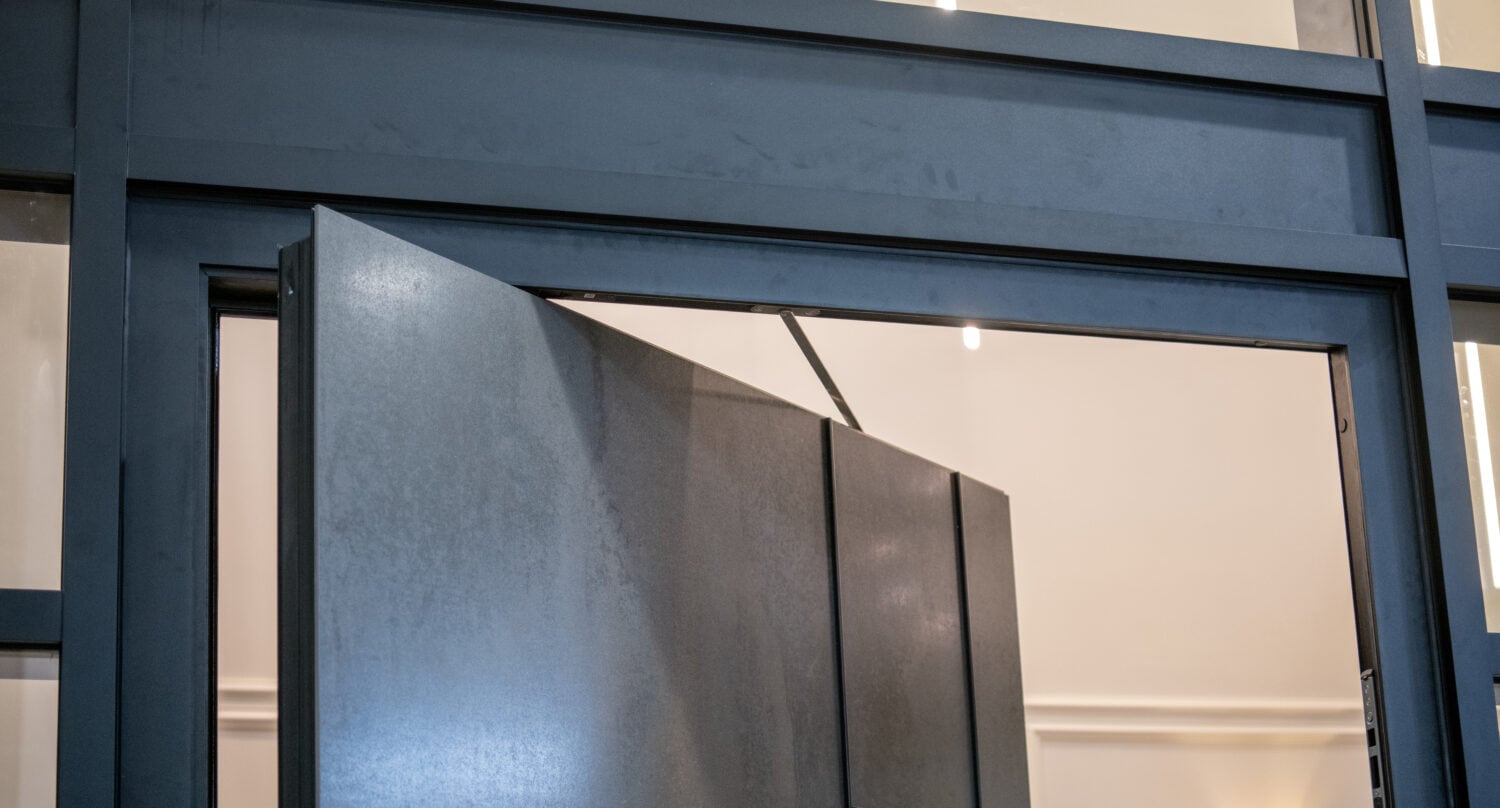

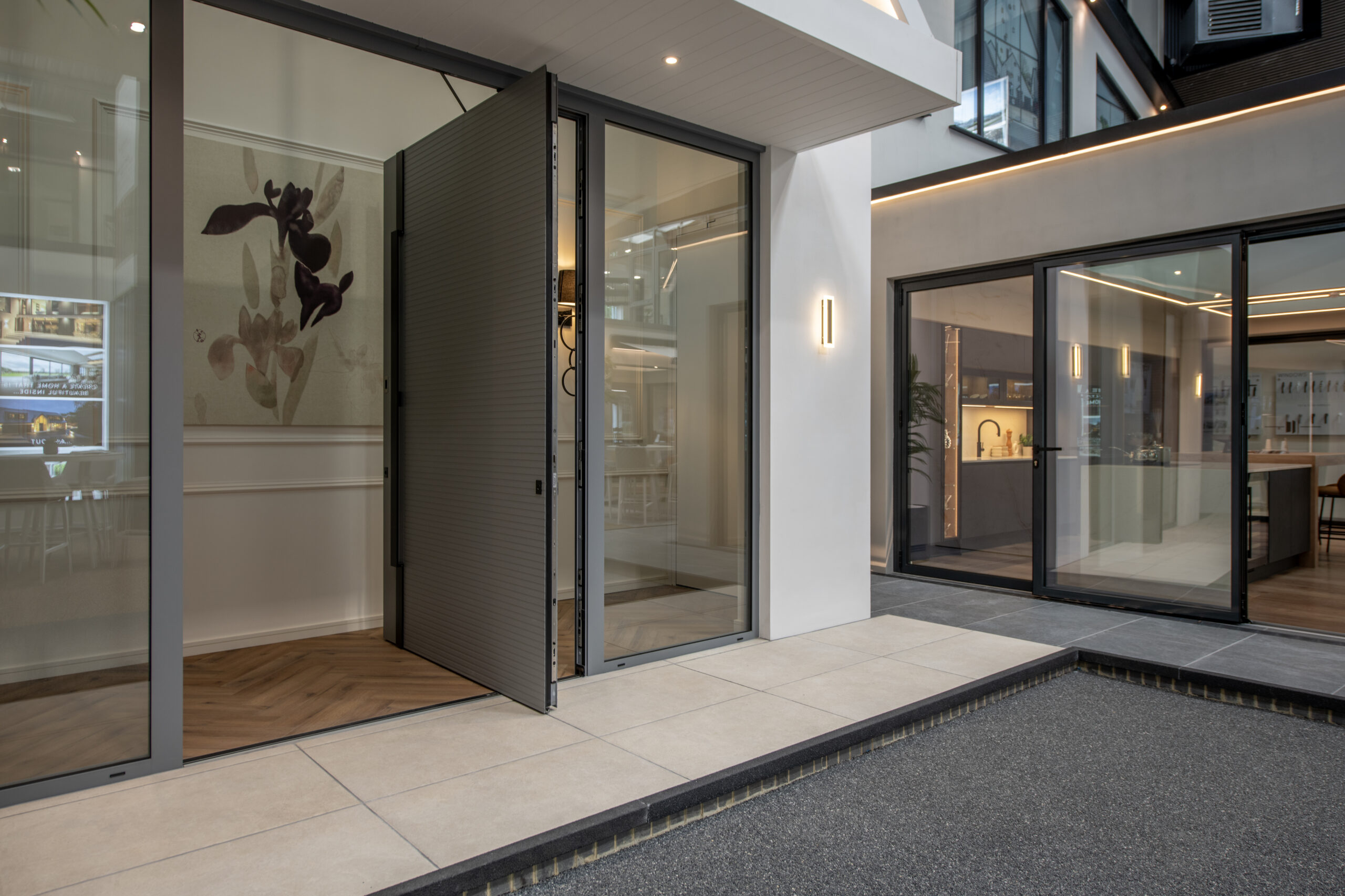

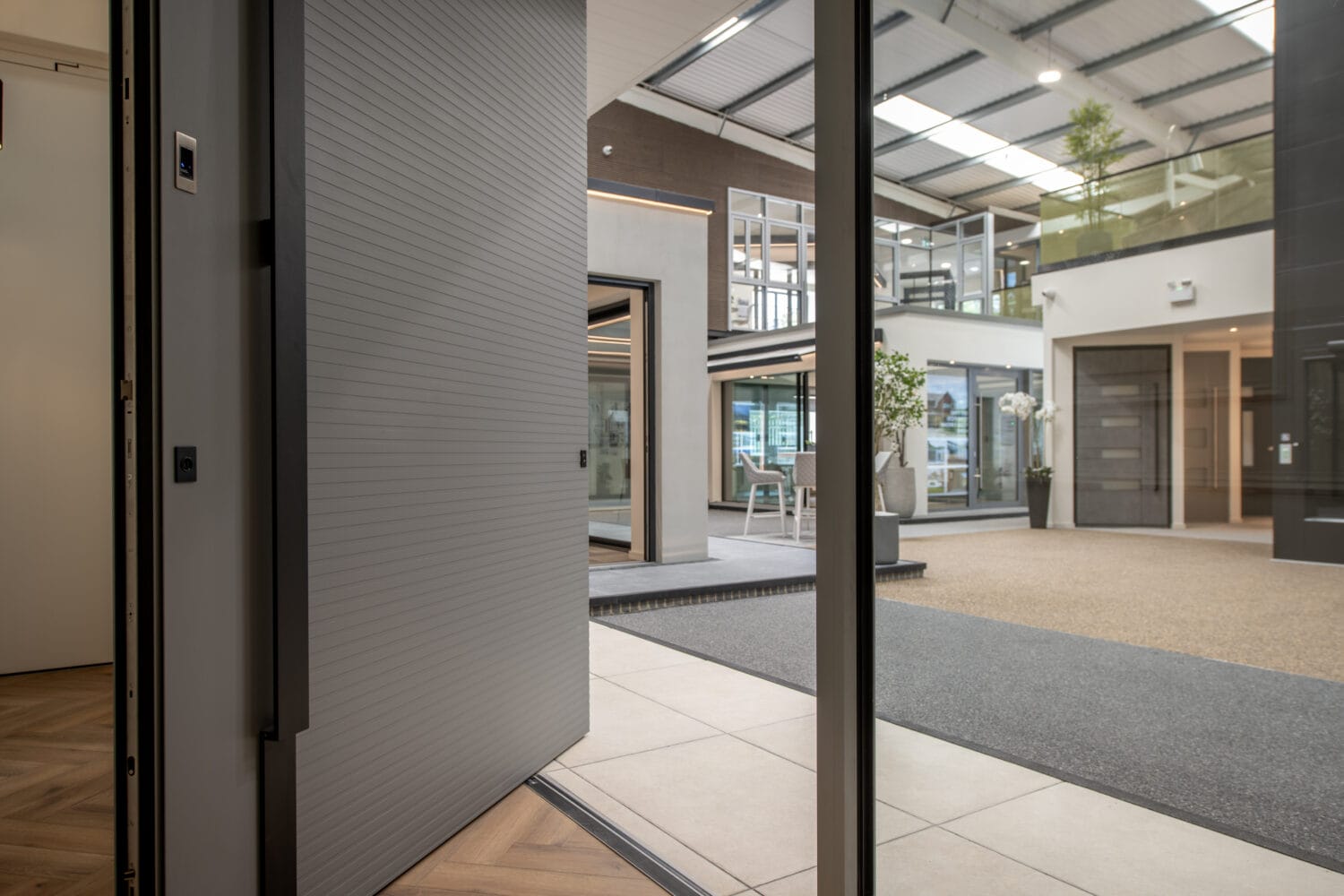

Manufactured using the same bonding methods as our Premium range, our pivot doors push the boundaries that bit further. Rather than traditional door hinges the doors pivot thanks to an innovative off centre rotation axis that not only adds a dramatic effect when opening the door but also aligns with the modern architectural demand for standout doors and windows.

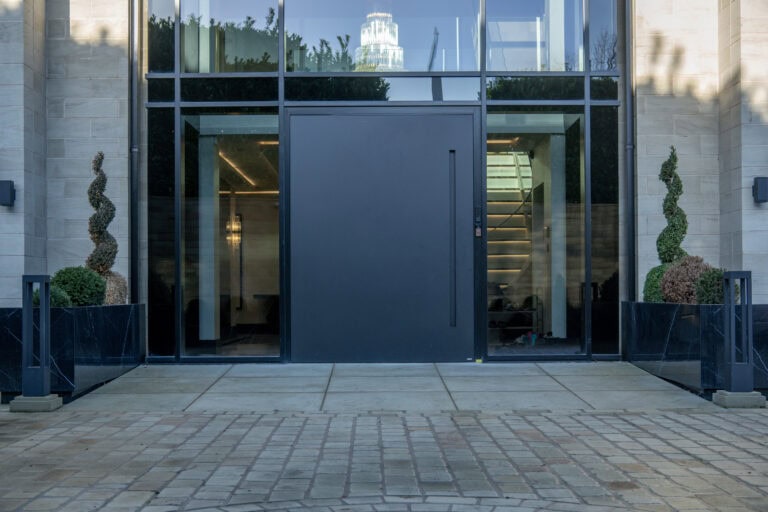

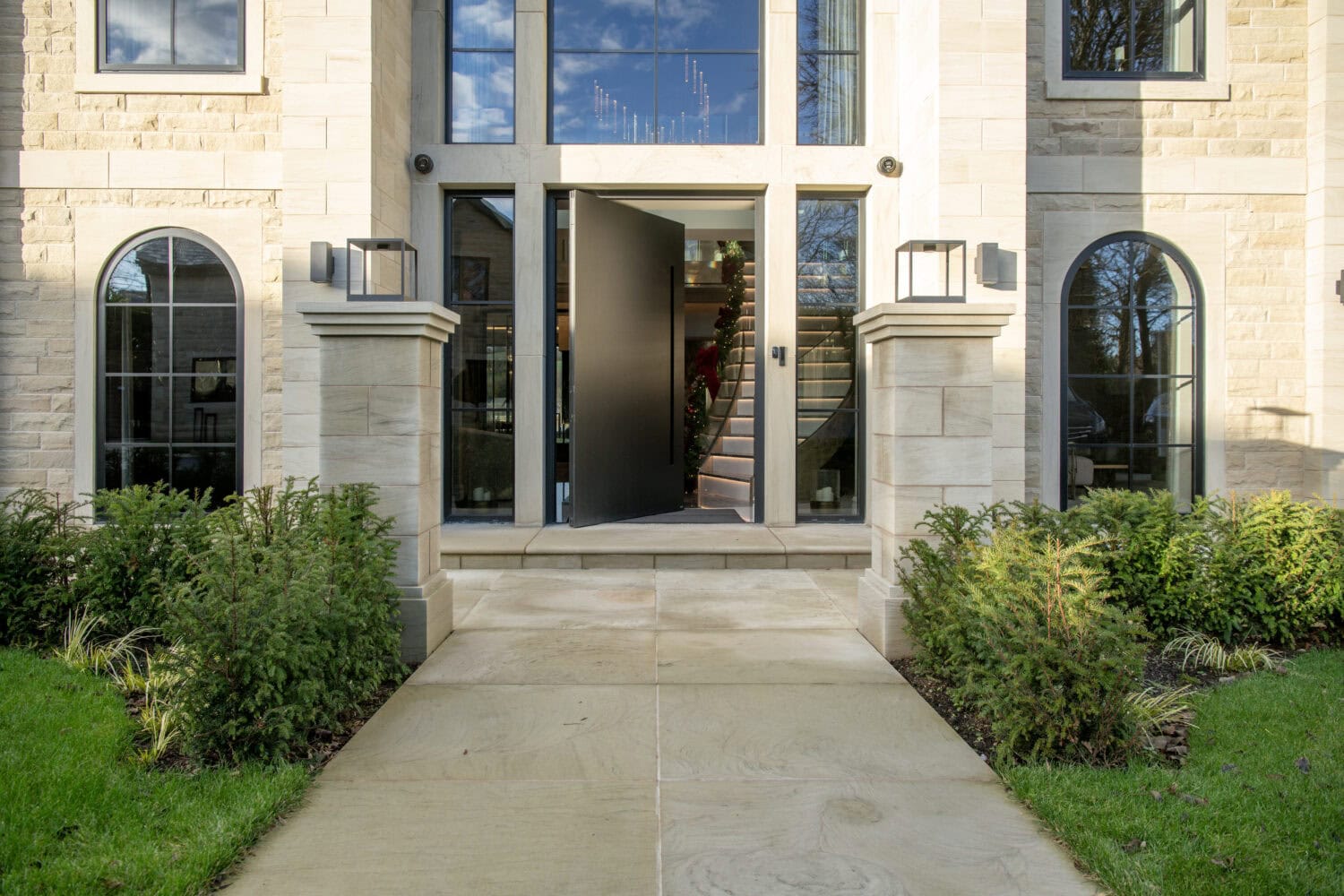

Available in a range of contemporary styles at huge widths and heights our pivot doors are a favourite amongst architects and homeowners looking to create a truly special entrance to a property.
Expertly manufactured in-house
We manufacture our aluminium pivot doors within our designated entrance door fabrication area and then double bond the 77mm panel to the door. The result is a stunning pivot door that is available glazed or in a unique panel design, all of which are designed to create a real stand out entrance feature when installed into any property.
Practicalities to bear in mind
Pivot doors are designed for warmer climates as the pivot action does not have a typical rebate to close against, meaning the wind loading isn’t as good as our traditional opening entrance doors. For this reason we recommend having the pivot doors set back and protected by an external overhang like a veranda or canopy. Incorporating this into the frontal design of any property brings the benefit of a statement entrance door with proper UK weather protection.

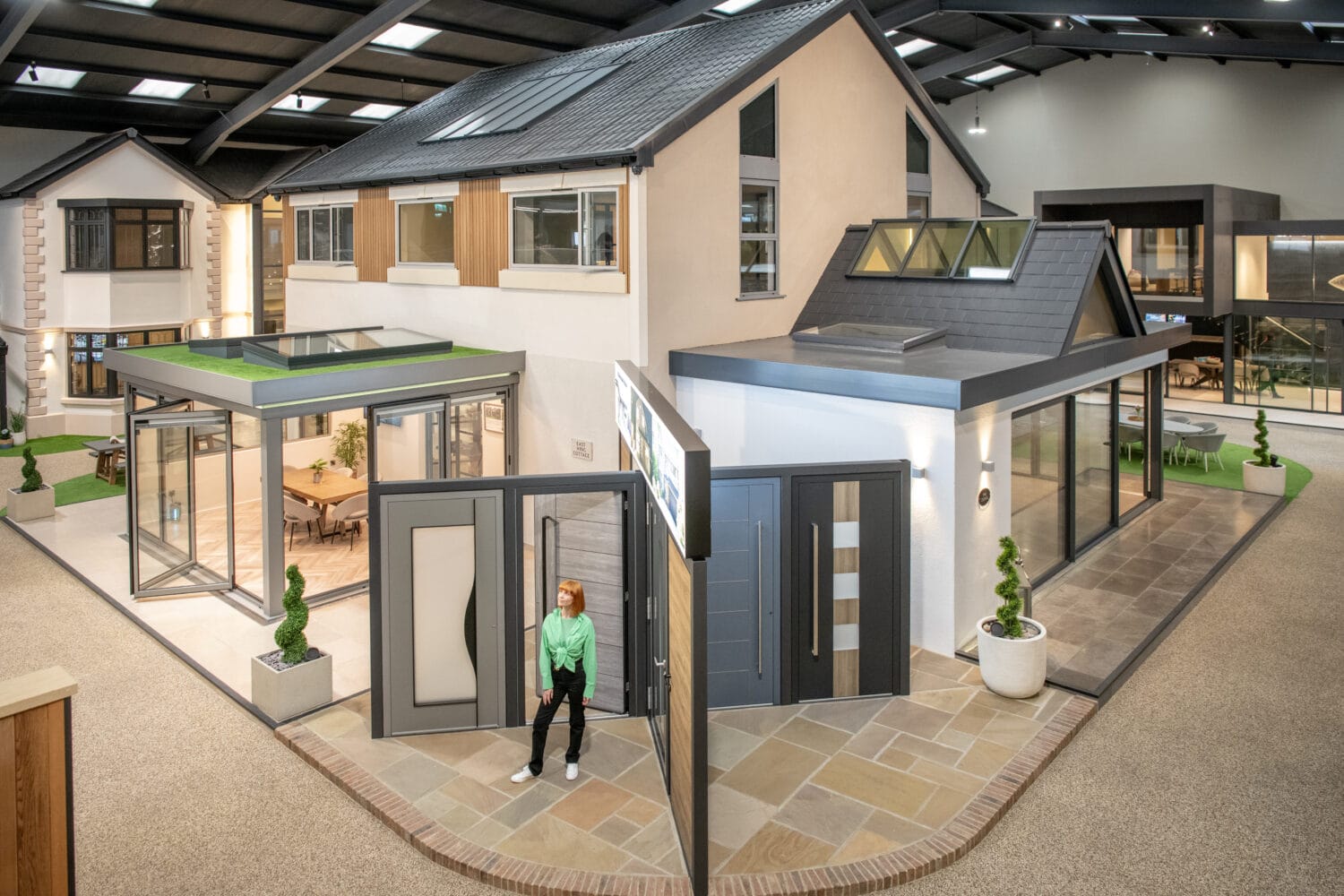

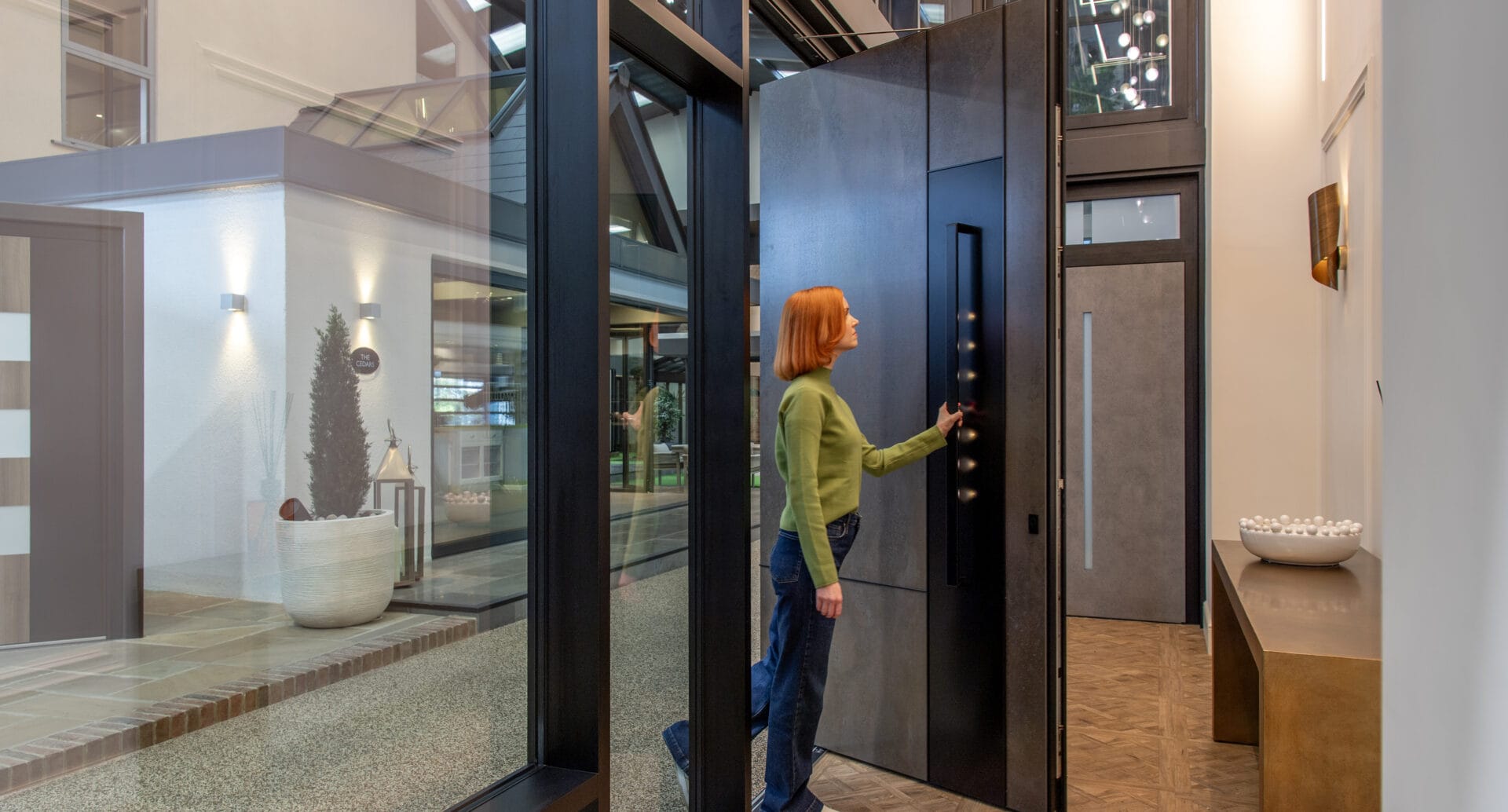

Another consideration with pivot doors is that it has two closing points as opposed to the one potential hazard with hinged doors so you need to bear that in mind if you have small children or pets. We recommend looking at the product in our showrooms and discussing these doors with our Sales team.
Impressive in every aspect
Our pivot doors offer exceptional thermal and acoustic insulation, alongside superior water and air tightness. The large door leaves are supported by concealed bearing hinges capable of handling up to 500 kg, which is why we can offer some designs up to a huge 1500mm wide by 3200mm high. Like all our products the system has been designed to compliment our full product range so can be incorporated into curtain walling or fixed alongside side and top lights.
The pivot action of the door means that it requires a flush threshold inside to out with a clever drainage system that will lead water away from the front of the door. The doors are available in any RAL colour and the panels themselves are highly insulated with packed PUR complete with an expansion joint. We can also offer these statement doors glazed with
triple-glazed panels with a thickness of up to 60 mm
Pivot Door Specifications
- 77mm frame depth
- 77mm panel depth
- 77mm insulating PU foam
- Maximum size 1500mm x 3200mm
- Maximum panel weight 500kg

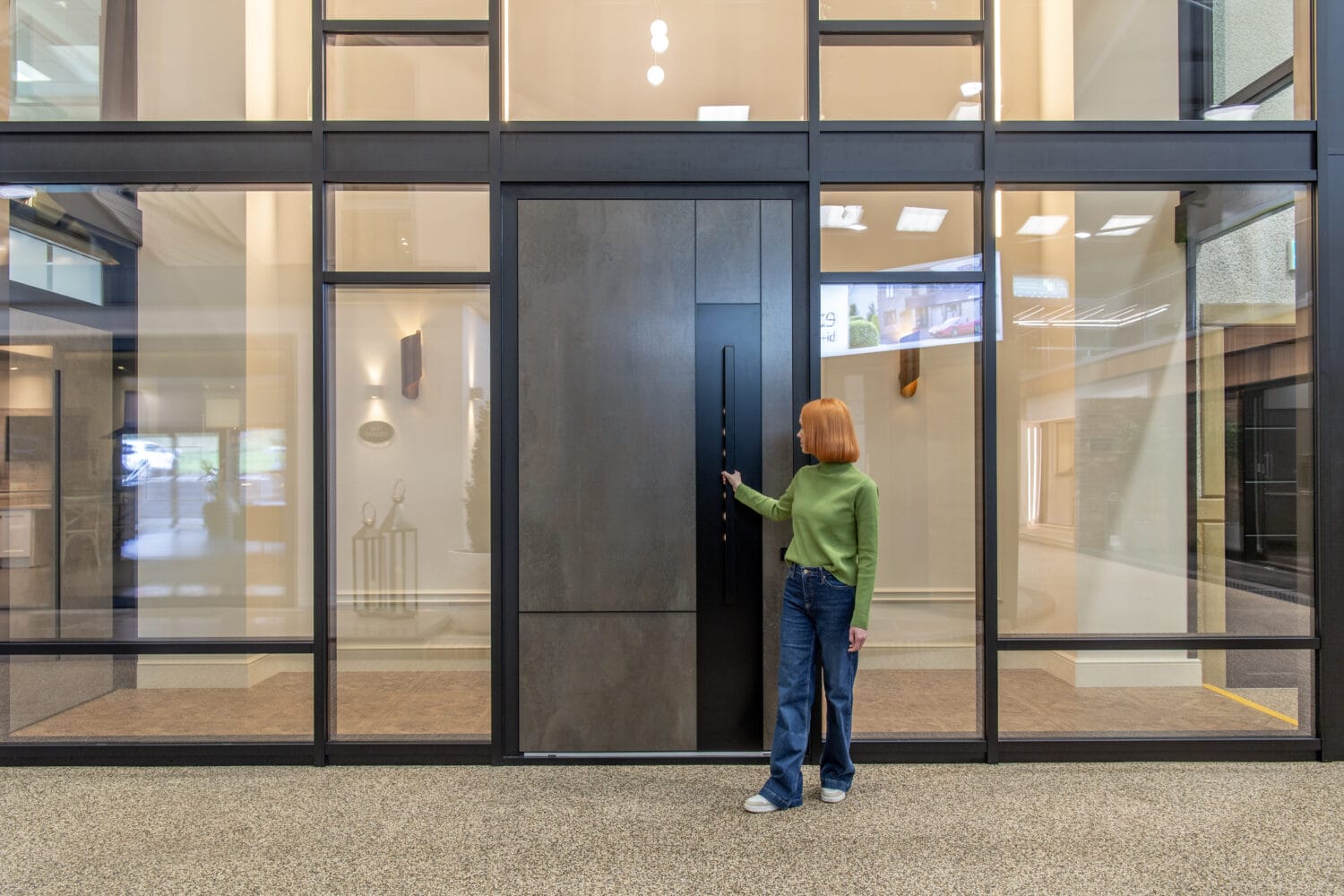

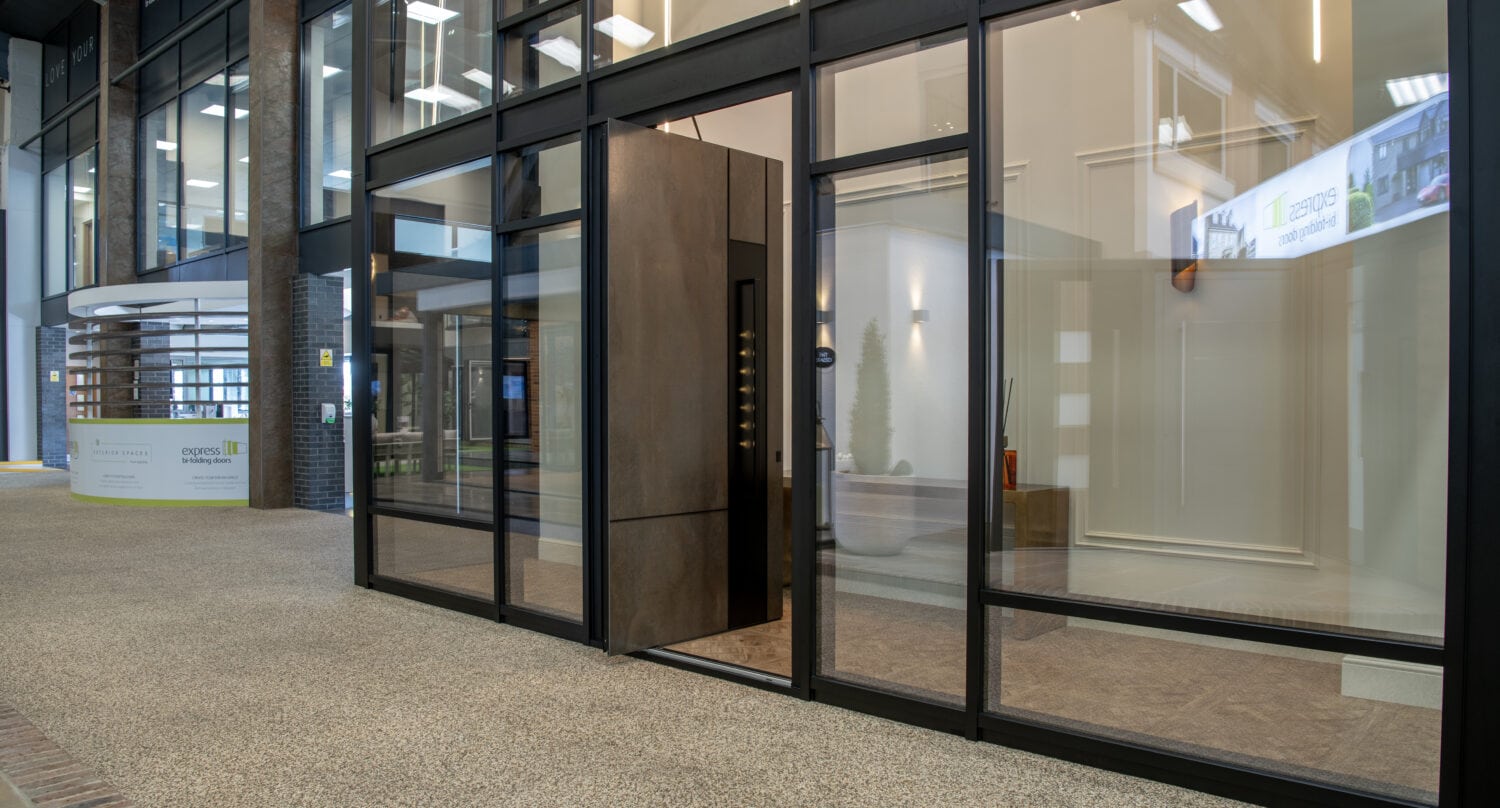

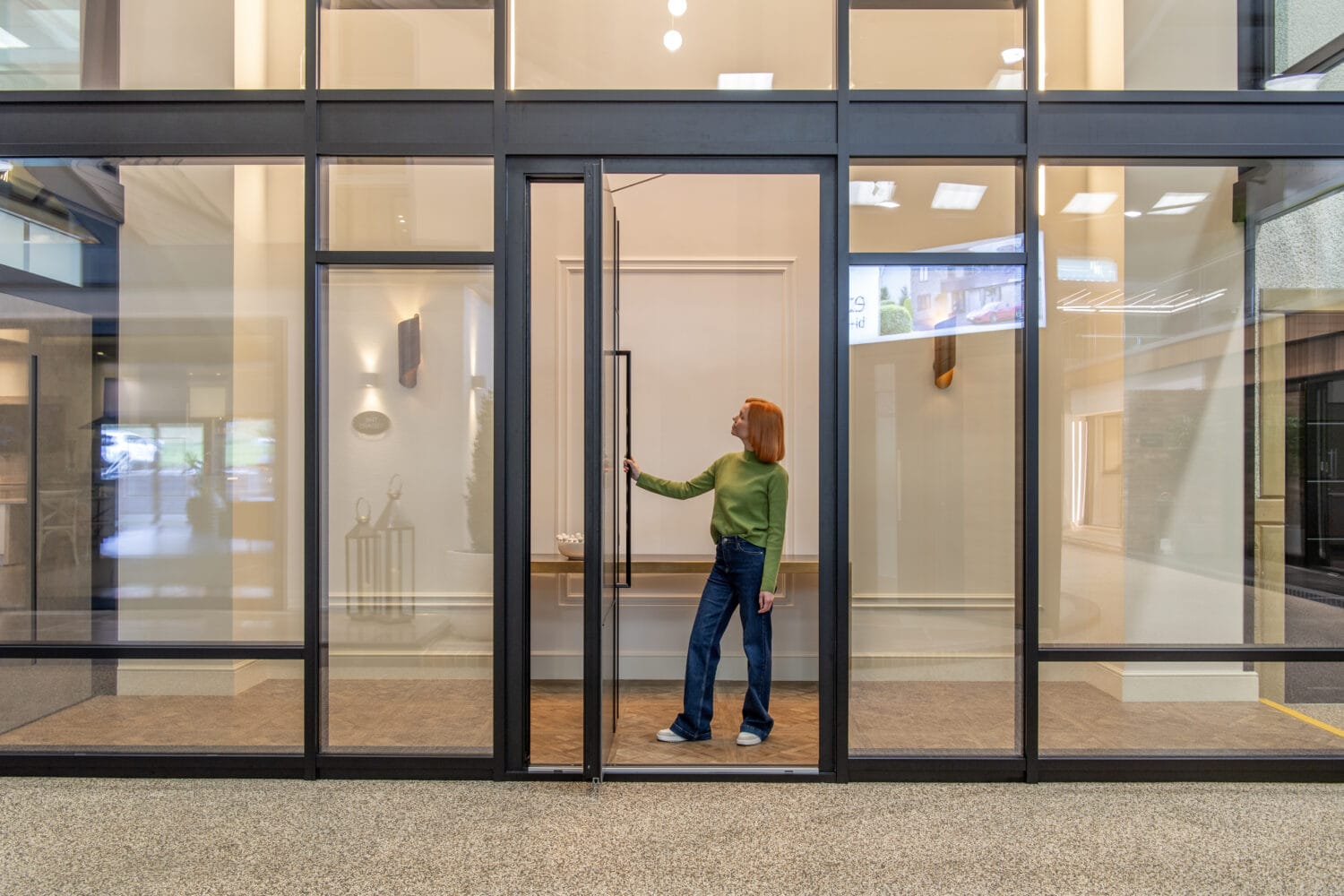

- Can be inserted into Express curtain walling atriums
- Air permeability class 4, EN 12207
- Watertightness class 4A (150 Pa), EN 12208
- Wind load resistance class C3 (1200 Pa), EN 12210
- Operating forces class 1, EN 12217
- Resistance to torsion class 4, EN 1192
- Resistance to vertical load class 4, EN 1192
- Thermal insulation UD from 0,65 W/(m²K)
Key features
Expertly manufactured in-house to bespoke sizes, we fabricate our pivot doors by bonding the skins of our panels to both faces of the door sash. This creates a flush finish, both inside & out. Once bonded, we then carefully store all our pivot doors for a minimum of forty-eight hours to allow them to set and complete the manufacturing process. As a result, all of our aluminium bonded panel entrance doors are extremely robust & secure, no matter which style characteristics you choose.
We offer a unique suite of distinctive panel designs, all available with a wide range of colours & finishes, handle options, & tailor-made sizes to create the perfect solution specifically for you.
- A completely bespoke manufacturing process, tailored to your needs
- Every panel is expertly manufactured in Europe
- All doors are put together in our world-class manufacturing facility
- Every door comes with anti-snap/bump/drill/pick 3 stars, diamond-rated security cylinders as standard
- Each door can be keyed alike with the rest of your express doors as standard – meaning one key to open all of your express doors
- We have a full range of bespoke side lights and top lights available
- Our pivot doors have overall U values as low as 0.65W/m2k
- Various distinctive styles available
- LED lighting available both inside and outside of the door

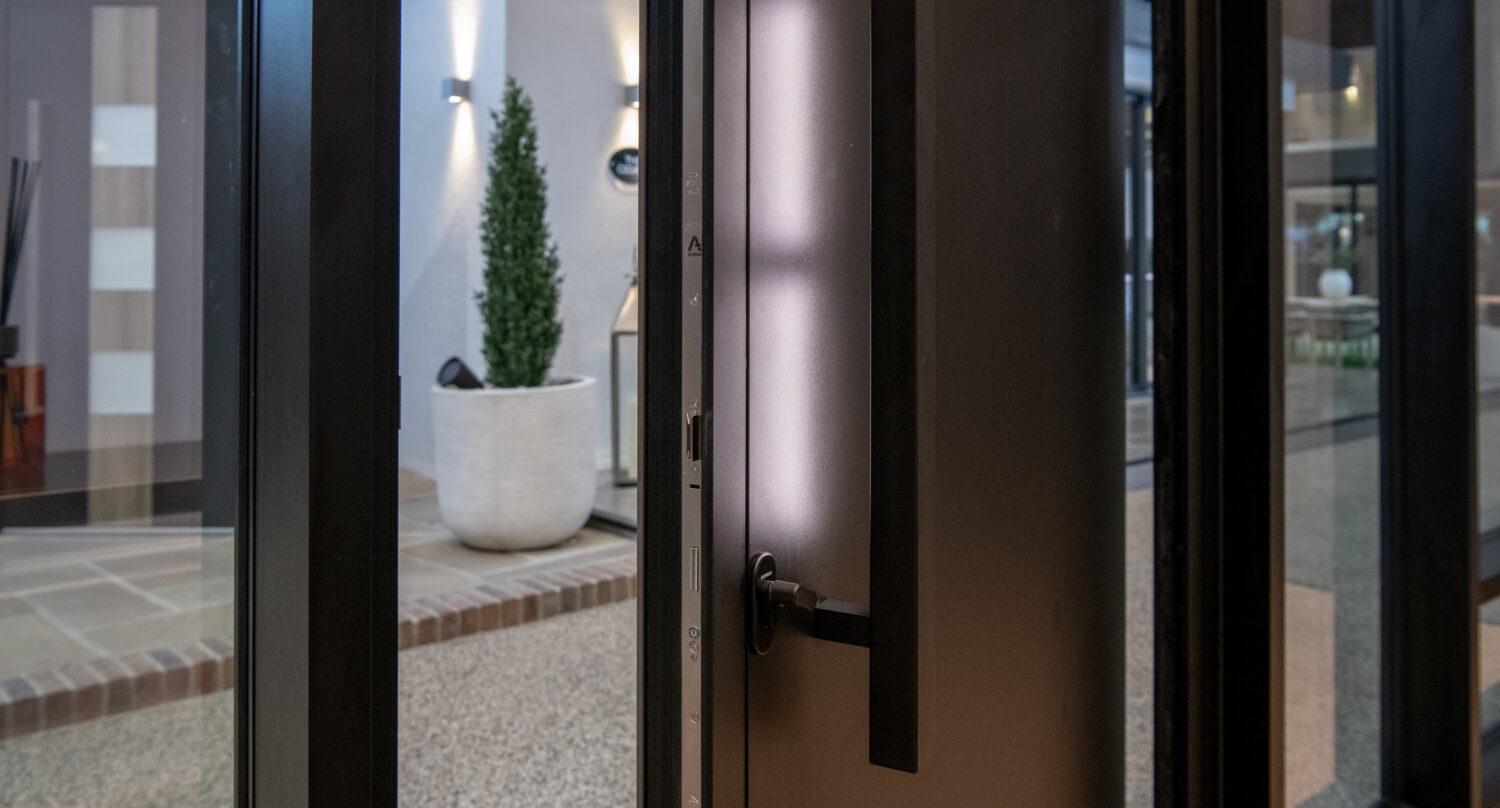

- Steel pull handles available on the inside of the door panel
- Easy to maintain
Pivot Door Designs
PD01-Unistyle
LED backlighting, available in warm or cold white colours.
Finger print reader available.
Maximum size up to 1500mm × 3200mm
PD03-Archiline
LED backlighting, available in warm or cold white colours.
Finger print reader available.
PD04-Vertical Touch
LED backlighting, available in warm or cold white colours.
Maximum size up to 1500mm x 3200mm

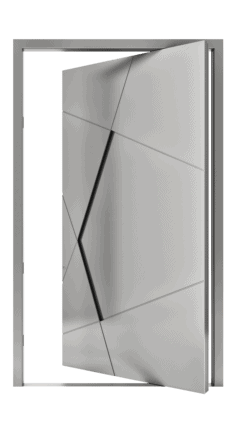

PD05-Asymmetrix
LED backlighting, available in warm or cold white colours.
Maximum size up to 1500mm x 3200mm
PD06-Stell Touch
LED backlighting, available in warm or cold white colours.
Fingerprint reader and touch sensor available.
Maximum size up to 1500mm × 3150 mm
PD08-Lineo Harmony
Maximum size up to 1500mm x 2950mm
PD09-Glass Elegance
LED backlighting, available in warm or cold white colours.
Fingerprint reader available.
Maximum size up to 1500 × 2950 mm
PD10-Abu Dhabi Elegance
LED backlighting, available in warm or cold white colours.
Fingerprint reader available.
Maximum size up to 1500 × 3150 mm
PD11-Modern Wood Craft
LED backlighting, available in warm or cold white colours.
Maximum size up to 1500 × 2950 mm
PD13-Elegant Grip
LED backlighting, available in warm or cold white colours.
Maximum size up to 1500 × 2950 mm
PD14-Sleek Glass
LED backlighting, available in warm or cold white colours.
Fingerprint reader available.
Maximum size up to 1500mm x 3200mm

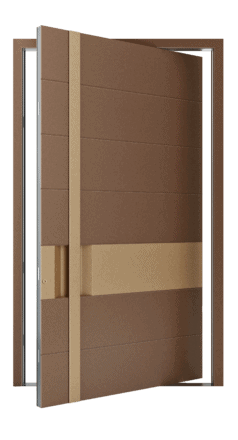

PD17-Innovative
LED backlighting, available in warm or cold white colours.
Maximum size up to 1500 × 3200 mm
Looking for something slightly more traditional?
We offer a huge range of entrance doors which we manufacture in-house. Like our pivot doors each range within our entrance door offering is available in a range of colours, finishes and panel designs ranging from ultra modern through to traditional. The best way to explore our range is to visit one of our showrooms or to request our detailed front door brochure.
You can also learn more online by clicking on any of the options below.
tailor the perfect front door for your home
Our full range of entrance doors
Premium entrance doors
This stunning range can be tailored to suit any property, available in a huge of styles from traditional to modern with flush bonded panels both sides, concealed hinges and unique finishes including natural woodgrains and bold metallic and concrete finishes.
XP77 Entrance Doors
More cost effective than our premium range these doors are available in a range of quality panel designs that are glazed into the door sash.
Smarts Signature Doors
Our most cost effective offering and the only doors within our range that we don't manufacture. These are the next generation of composite doors but such is the quality, custom options and price point we are happy to source these for our customers.

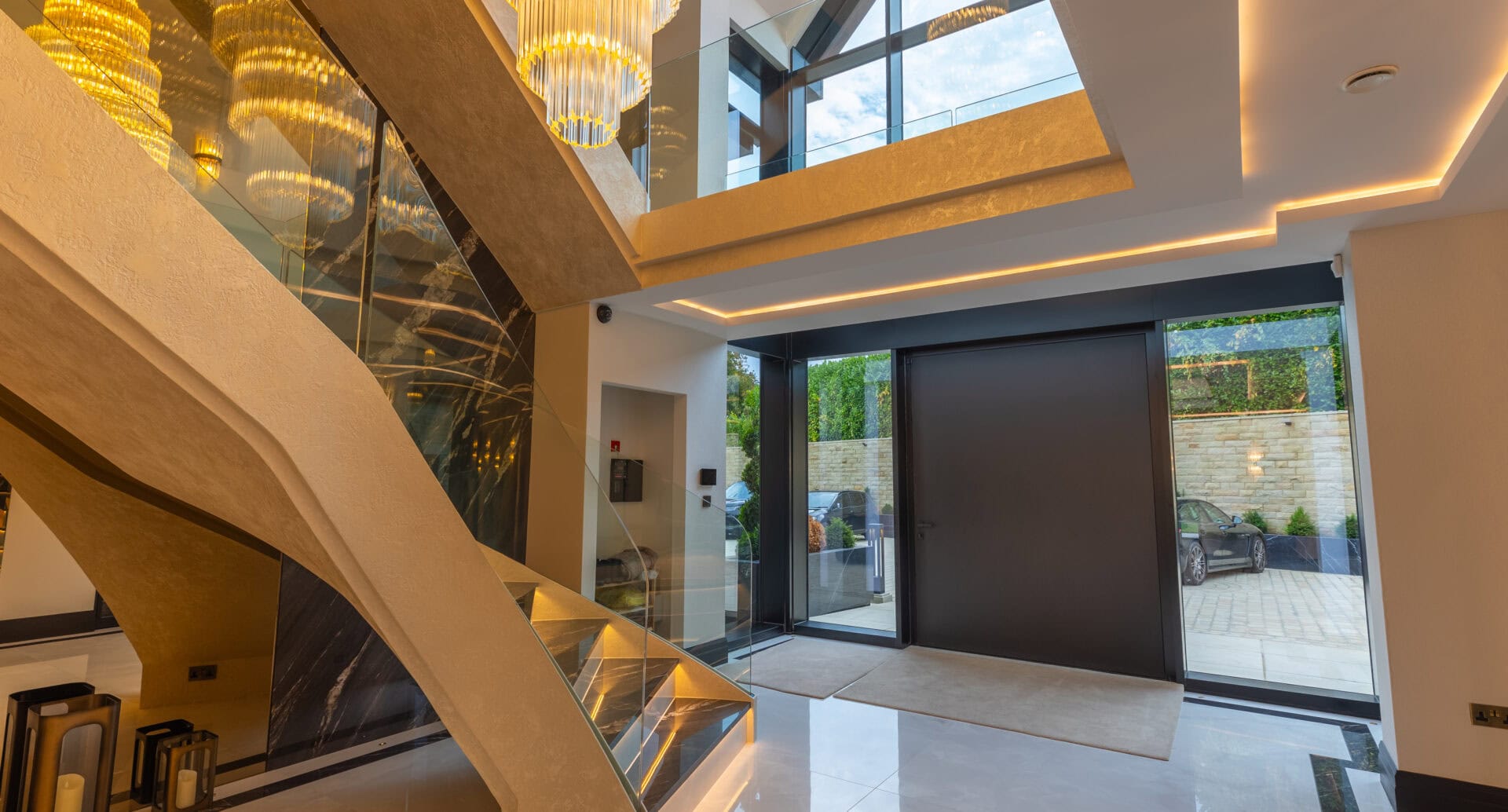

Entrance atriums
The entrance door can sometimes act as the focal point within a grand entrance design, our case studies demonstrate this but you can learn more about entrance atriums and how our doors play a pivotal role in them by clicking below.
